512Kb Non-Volatile EPROM, organized as 64K x 8, offers a 100ns access time. This surface-mount integrated circuit features a parallel interface and operates from a 4.5V to 5.5V supply voltage, with a nominal 5V. Encased in a 32-pin PLCC package, it supports industrial temperature ranges from 0°C to 85°C. The component is RoHS compliant and lead-free.
PackagePLCC
Voltage5V
Current50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics M27C512-10C6 technical specifications.
General
| Access Time | 100ns |
| Access Time-Max | 100ns |
| Package/Case | PLCC |
| Density | 512Kb |
| Height | 2.8mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 14.05mm |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 512Kb |
| Memory Type | Non-Volatile, , EPROM |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Words | 64000 |
| Operating Supply Voltage | 5V |
| Organization | 64KX8 |
| Package Quantity | 32 |
| Packaging | Rail/Tube |
| Programming Voltage | 12.75V |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 50mA |
| Supply Voltage-Nom | 5V |
| Temperature Grade | INDUSTRIAL |
| Voltage | 5V |
| Width | 11.51mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics M27C512-10C6 Datasheet
Download the complete datasheet for Stmicroelectronics M27C512-10C6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

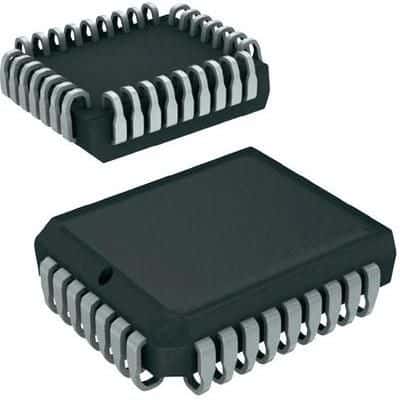

Product Images
