64Kb UV EPROM, organized as 8K x 8, offering 100ns access time. This non-volatile memory component features a parallel interface and operates from a 4.5V to 5.5V supply voltage, with a nominal 5V requirement. Packaged in a lead-free, ceramic DIP-28 with a window for UV erasure, it supports through-hole mounting. Operating temperature range is 0°C to 70°C, with a programming voltage of 12.5V and a typical supply current of 30mA.
Frequency100GHz
PackageDIP
Current30mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics M27C64A-10F1 technical specifications.
General
| Access Time | 100ns |
| Access Time-Max | 100ns |
| Package/Case | DIP |
| Density | 64Kb |
| Frequency | 100GHz |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 64Kb |
| Memory Type | Non-Volatile, , EPROM |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Operating Supply Current | 30mA |
| Operating Supply Voltage | 5V |
| Organization | 8KX8 |
| Packaging | Rail/Tube |
| Programming Voltage | 12.5V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 30mA |
| Supply Voltage-Nom | 5V |
| Temperature Grade | COMMERCIAL |
| Termination | Through Hole |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics M27C64A-10F1 Datasheet
Download the complete datasheet for Stmicroelectronics M27C64A-10F1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

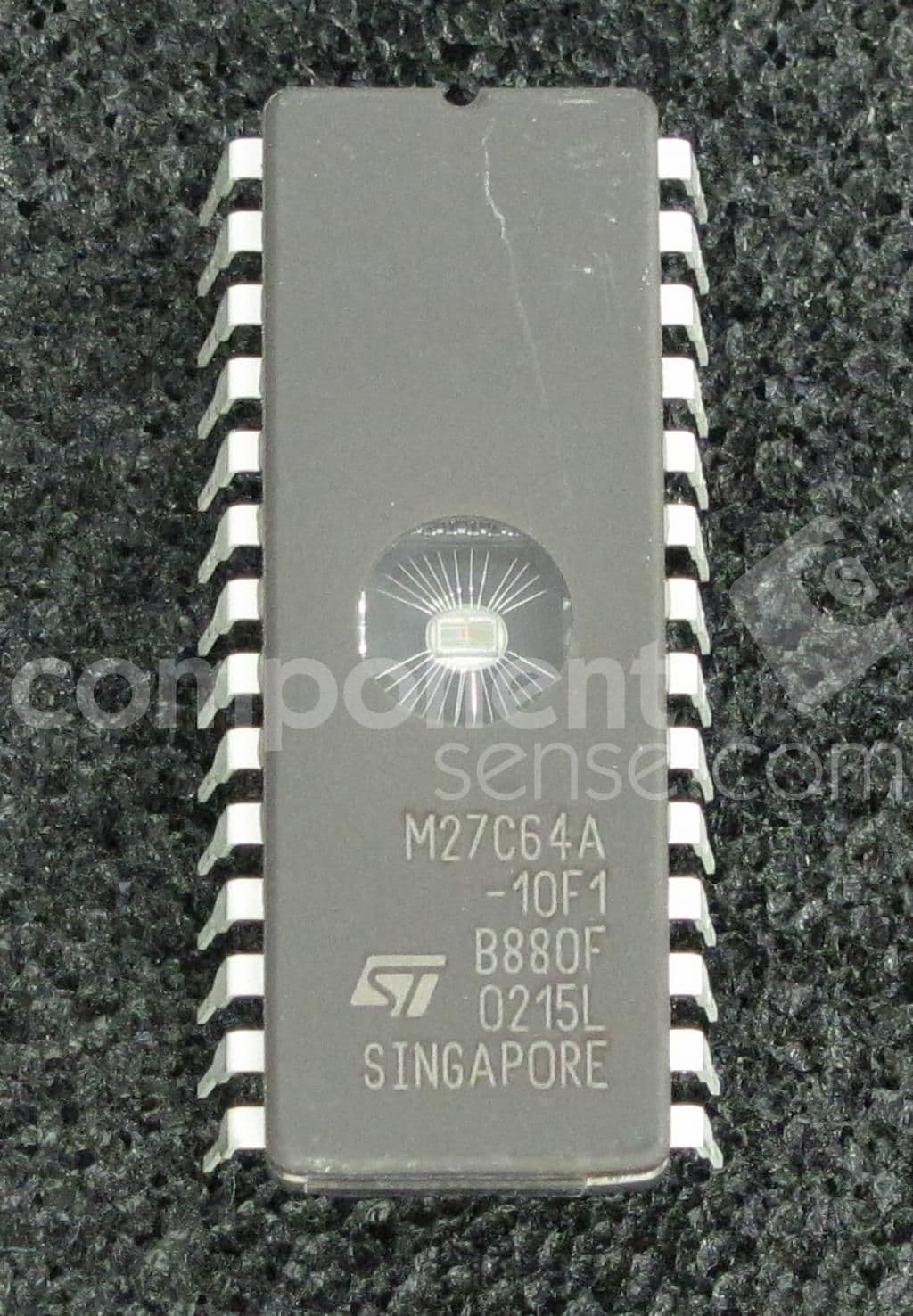

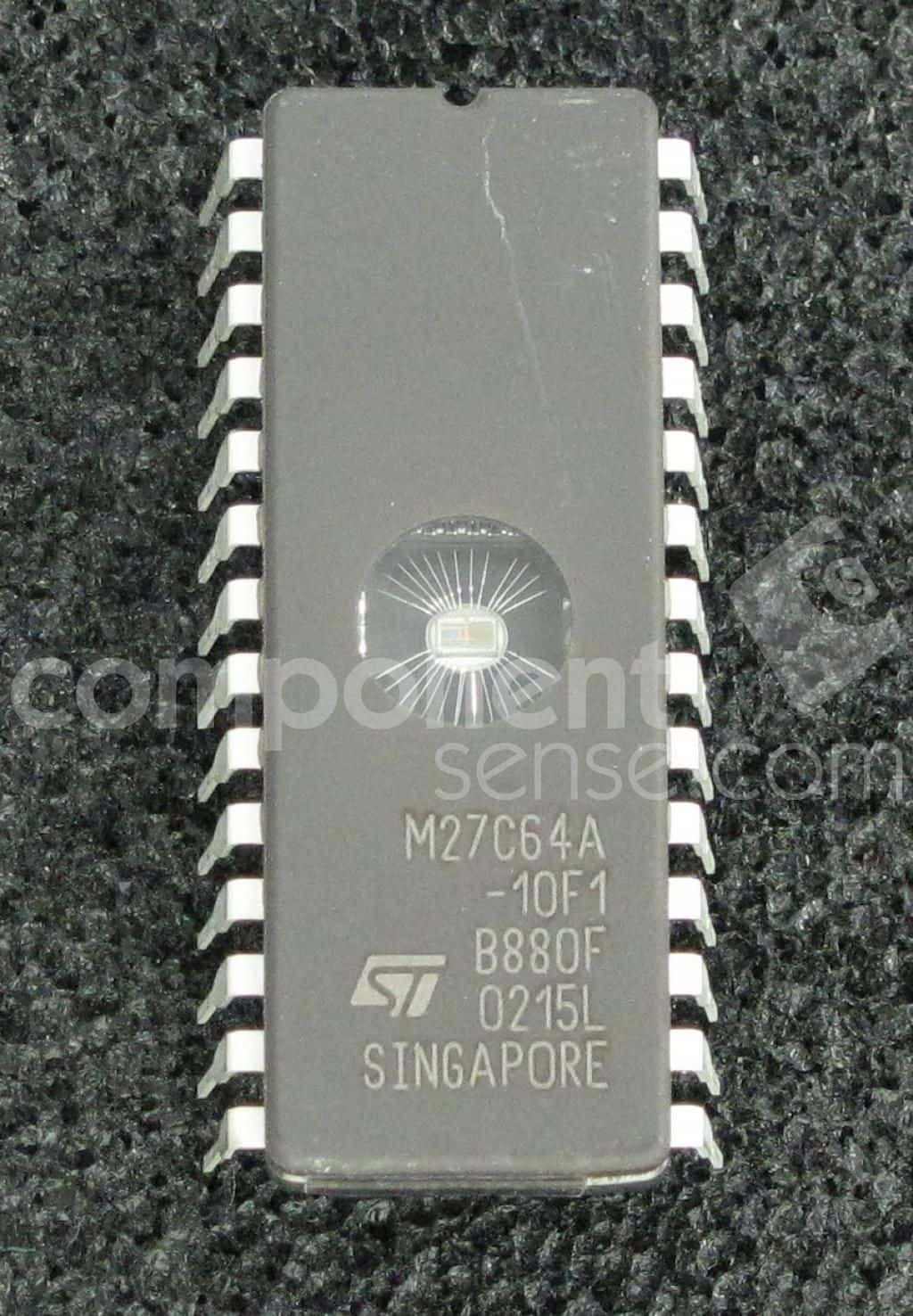

Product Images
