64Kb UV EPROM with 8K x 8 organization, offering a 150ns access time. This non-volatile memory component features a parallel interface and operates from a 4.5V to 5.5V supply voltage range. Packaged in a lead-free, ceramic windowed DIP-28 (CDIP28), it supports through-hole mounting and has a commercial temperature grade. Programming voltage is 12.5V, with a typical operating supply current of 30mA.
Frequency150GHz
PackageF
Current30mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics M27C64A-15F1 technical specifications.
General
Access Time
150ns
Access Time-Max
150ns
Package/Case
F
Density
64Kb
Frequency
150GHz
Height
4.5mm
Interface
Parallel
Lead Free
Lead Free
Length
37.34mm
Max Operating Temperature
70°C
Max Supply Voltage
5.5V
Memory Size
64Kb
Memory Type
Non-Volatile, , EPROM
Min Operating Temperature
0°C
Min Supply Voltage
4.5V
Mount
Through Hole
Operating Supply Current
30mA
Operating Supply Voltage
5V
Organization
8KX8
Packaging
Rail/Tube
Programming Voltage
12.5V
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
30mA
Supply Voltage-Nom
5.5V
Temperature Grade
COMMERCIAL
Width
13.36mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics M27C64A-15F1 Datasheet
Download the complete datasheet for Stmicroelectronics M27C64A-15F1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

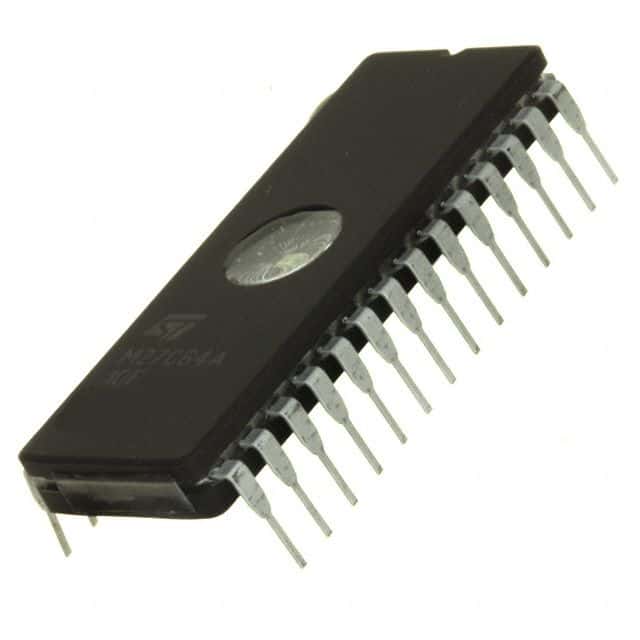

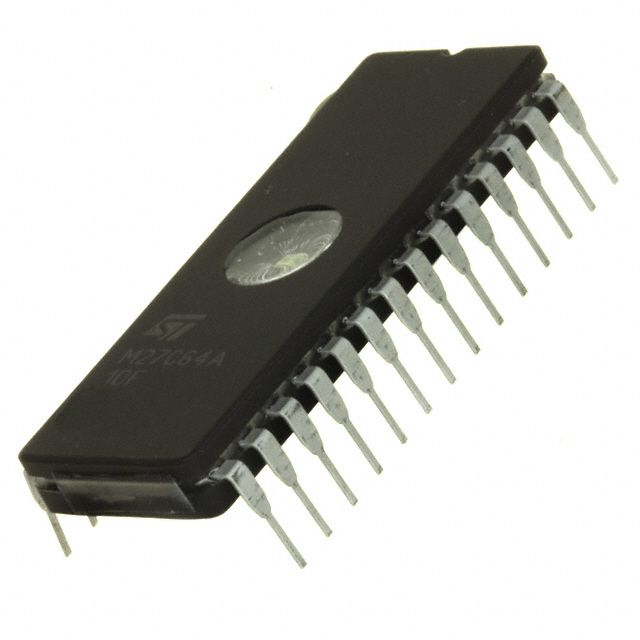

Product Images
