Stmicroelectronics
M27C64A-20F6
8KX8 UVPROM, 200ns, CDIP28, LEAD FREE, CERAMIC, WINDOWED, FRIT SEALED, DIP-28
Current30mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics M27C64A-20F6 technical specifications.
General
| Access Time | 200ns |
| Access Time-Max | 200ns |
| Density | 64Kb |
| Height | 4.5mm |
| Interface | Parallel |
| Length | 37.34mm |
| Max Operating Temperature | 85°C |
| Memory Size | 64Kb |
| Memory Type | Non-Volatile, , EPROM |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Operating Supply Current | 30mA |
| Operating Supply Voltage | 5V |
| Organization | 8KX8 |
| Packaging | Rail/Tube |
| Programming Voltage | 12.5V |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 30mA |
| Width | 13.36mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics M27C64A-20F6 Datasheet
Download the complete datasheet for Stmicroelectronics M27C64A-20F6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

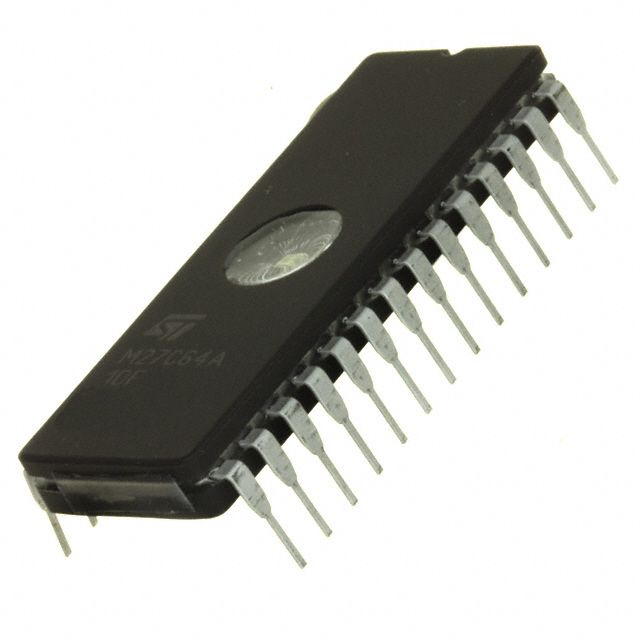

Product Images
