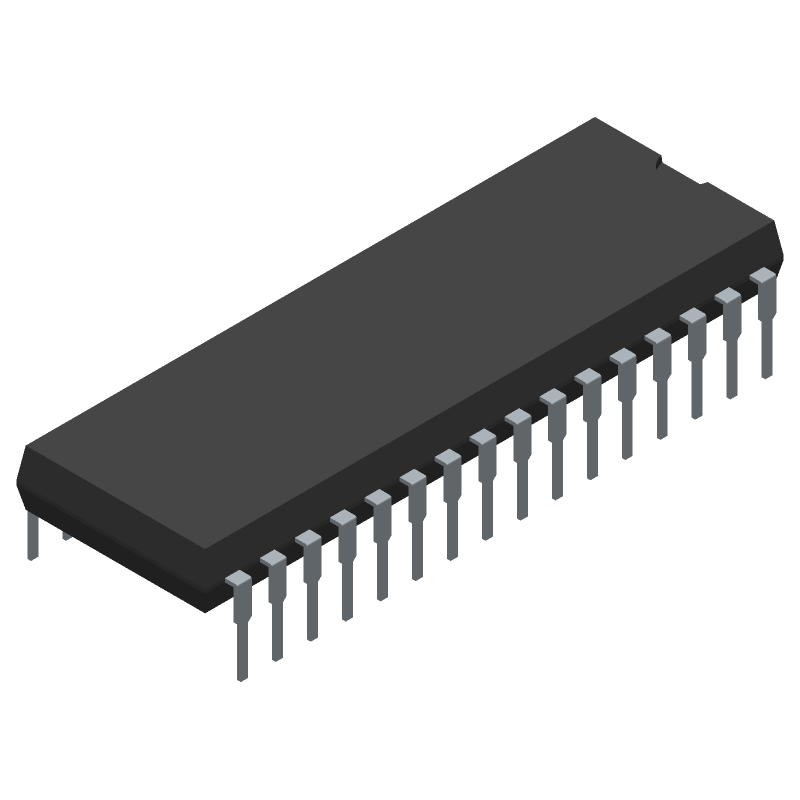

This 8Mb EPROM memory device operates at a maximum supply voltage of 5.5V and a minimum of 4.5V, with an operating supply current of 50mA. It features an access time of 80ns and is available in a through hole package. The device is RoHS compliant and has a commercial temperature grade, with a maximum operating temperature of 70°C and a minimum of -55°C.
Current50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics M27C801-80F1 technical specifications.
General
| Access Time | 80ns |
| Access Time-Max | 80ns |
| Density | 8Mb |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 8Mb |
| Memory Type | Non-Volatile, , EPROM |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Operating Supply Current | 50mA |
| Operating Supply Voltage | 5V |
| Organization | 1MX8 |
| Packaging | Rail/Tube |
| Programming Voltage | 12.75V |
| RoHS Compliant | Yes |
| Supply Current | 50mA |
| Supply Voltage-Nom | 5V |
| Temperature Grade | COMMERCIAL |
Compliance
| RoHS | Compliant |
