Industrial-grade Real-Time Clock (RTC) IC with I2C and 2-wire serial interface, operating from 2.7V to 3.6V supply. Features a 32kHz frequency, 128 bytes of clearable NVRAM, and tamper detection. Supports YY-MM-DD-dd date and HH:MM:SS:hh time formats. Packaged in SOIC for surface mounting, with a maximum operating temperature of 85°C.
Frequency32kHz
PackageSOIC
Current750uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics M41ST87WMX6 technical specifications.
General
Package/Case
SOIC
Date Format
YY-MM-DD-dd
Frequency
32kHz
Height
2.39mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
18.01mm
Logic Function
Clock
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
20mA
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
128B
Min Supply Voltage
2.7V
Mount
Surface Mount
Non-volatile Memory Size
160B
Package Quantity
28
Packaging
Rail/Tube
Power Dissipation
1W
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
M41ST87W
Supply Current
750uA
Supply Voltage-Nom
3.6V
Temperature Grade
INDUSTRIAL
Termination
SMD/SMT
Time Format
HH:MM:SS:hh
Width
7.67mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics M41ST87WMX6 Datasheet
Download the complete datasheet for Stmicroelectronics M41ST87WMX6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

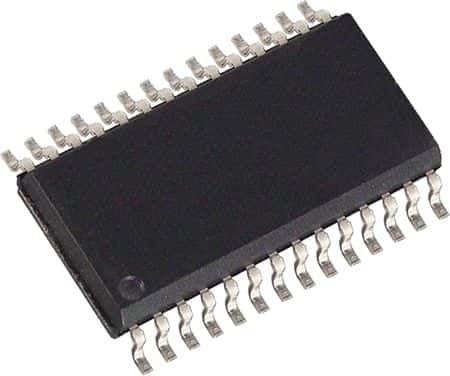

Product Images
