Serial Real Time Clock (RTC) IC with 8-byte clock/calendar and battery backup. Features I2C and 2-wire serial interface, operating at 400kHz. Supports YY-MM-DD-dd date and HH:MM:SS time formats. Surface mountable in an 8-pin SOIC package, with a supply voltage range of 2.7V to 5.5V and low nominal supply current of 600nA. Industrial temperature grade from -40°C to 85°C.
Frequency400kHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics M41T00SM6F technical specifications.
General
Package/Case
SOIC
Date Format
YY-MM-DD-dd
Frequency
400kHz
Height
1.25mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
5mm
Logic Function
Clock
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Supply Current
600nA
Non-volatile Memory Size
8B
Number of Outputs
1
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Voltage-Nom
5.5V
Temperature Grade
INDUSTRIAL
Time Format
HH:MM:SS
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics M41T00SM6F Datasheet
Download the complete datasheet for Stmicroelectronics M41T00SM6F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

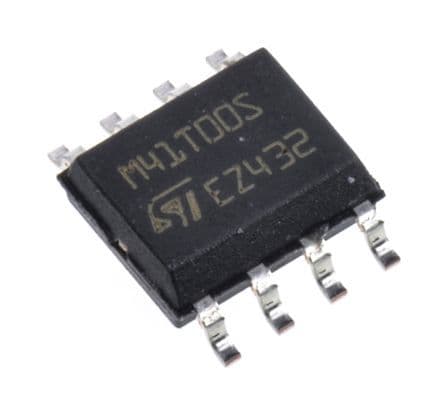

Product Images
