16Kb NVSRAM with 150ns access time, organized as 2K x 8 bits. This parallel interface memory operates at 5V with a 4.5V to 5.5V supply voltage range. Features include through-hole mounting in a 24-pin DIP package, 80mA operating supply current, and commercial temperature grade. RoHS compliant and lead-free.
Frequency150GHz
PackageDIP
Current80mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics M48Z12-150PC1 technical specifications.
General
Access Time
150ns
Access Time-Max
150ns
Package/Case
DIP
Data Bus Width
8b
Density
16Kb
Frequency
150GHz
Height
8.89mm
Interface
Parallel
Lead Free
Lead Free
Length
34.8mm
Max Operating Temperature
70°C
Max Supply Voltage
5.5V
Memory Size
16Kb
Memory Type
RAM, , Non-Volatile, NVSRAM, SRAM
Min Operating Temperature
0°C
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Words
2000
Operating Supply Current
80mA
Operating Supply Voltage
5V
Organization
2KX8
Package Quantity
14
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
80mA
Supply Voltage-Nom
5.5V
Temperature Grade
COMMERCIAL
Width
18.34mm
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics M48Z12-150PC1 Datasheet
Download the complete datasheet for Stmicroelectronics M48Z12-150PC1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

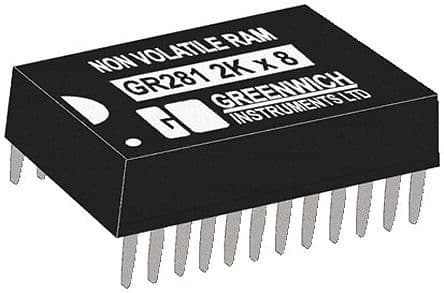

Product Images
