16Kb NVSRAM with 70ns access time, featuring an 8-bit data bus width and parallel interface. This non-volatile memory component operates at 5V, with a supply voltage range of 4.5V to 5.5V. Designed for through-hole mounting, it is packaged in a 24-pin DIP with a 0°C to 70°C operating temperature range.
Frequency70GHz
Current80mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics M48Z12-70PC1 technical specifications.
General
| Access Time | 70ns |
| Access Time-Max | 70ns |
| Data Bus Width | 8b |
| Density | 16Kb |
| Frequency | 70GHz |
| Height | 8.89mm |
| Interface | Parallel |
| Length | 34.8mm |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 16Kb |
| Memory Type | Non-Volatile, , NVSRAM |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Operating Supply Voltage | 5V |
| Organization | 2KX8 |
| Package Quantity | 14 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 80mA |
| Width | 18.34mm |
| Word Size | 8b |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics M48Z12-70PC1 Datasheet
Download the complete datasheet for Stmicroelectronics M48Z12-70PC1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

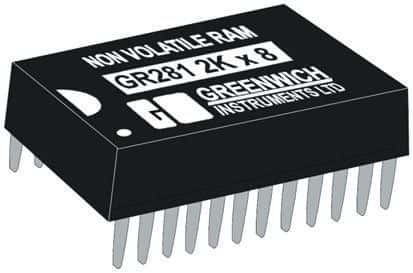

Product Images
