8-bit D-Type Flip-Flop, CMOS technology, positive edge triggered. Features a 20-pin TSSOP surface mount package, operating from a 2V to 6V supply voltage. Offers a maximum operating frequency of 66MHz with a propagation delay of 25ns. Supports ±5.2mA high and low level output current, with 5pF input capacitance. RoHS compliant and lead-free.
Frequency66MHz
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Stmicroelectronics M74HC273TTR technical specifications.
General
Package/Case
TSSOP
Clock Edge Trigger Type
Positive Edge
Frequency
66MHz
High Level Output Current
-5.2mA
Input Capacitance
5pF
Input Type
SINGLE-ENDED
Lead Free
Lead Free
Logic Function
D-Type, Flip-Flop
Low Level Output Current
5.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
8
Number of Circuits
8
Number of Elements
1
Number of Input Lines
8
Number of Output Lines
8
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
25ns
Quiescent Current
4uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
74HC
Technology
CMOS
Turn-On Delay Time
15ns
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics M74HC273TTR Datasheet
Download the complete datasheet for Stmicroelectronics M74HC273TTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

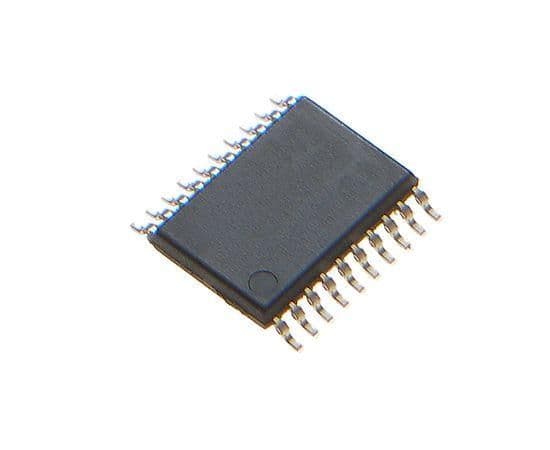

Product Images
