7-bit asynchronous negative edge-triggered up binary counter IC. Features CMOS technology, operating from a 2V to 6V supply range with a nominal 5V. Offers a maximum operating frequency of 79MHz and a propagation delay of 20ns. Packaged in a 14-pin PDIP for through-hole mounting.
Frequency79MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics M74HC4024B1R technical specifications.
General
| Package/Case | PDIP |
| Clock Edge Trigger Type | Negative Edge |
| Direction | Up, Unidirectional |
| Frequency | 79MHz |
| Height | 4.59mm |
| Lead Free | Lead Free |
| Length | 20mm |
| Logic Function | Counter |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of Bits | 7 |
| Number of Bits per Element | 7 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Input Lines | 1 |
| Number of Inputs | 7 |
| Number of Output Lines | 7 |
| Operating Supply Voltage | 5V |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Propagation Delay | 20ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reset | Asynchronous |
| RoHS Compliant | Yes |
| Series | 74HC |
| Supply Voltage-Nom | 6V |
| Technology | CMOS |
| Turn-On Delay Time | 180ns |
| Width | 7.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics M74HC4024B1R Datasheet
Download the complete datasheet for Stmicroelectronics M74HC4024B1R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

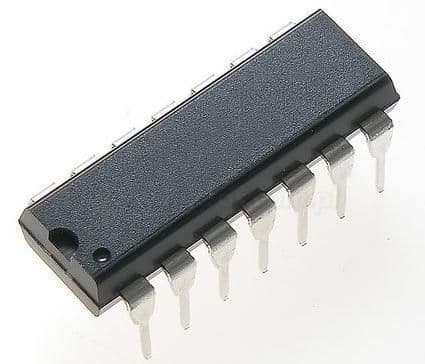

Product Images
