Stmicroelectronics
M74HC688TTR
HC/UH SERIES, 8-BIT IDENTITY COMPARATOR, INVERTED OUTPUT, PDSO20, TSSOP-20
PackageTSSOP
MountingSurface Mount
PolarityInverting
Quick Jump:
Technical Specifications
Stmicroelectronics M74HC688TTR technical specifications.
General
Package/Case
TSSOP
High Level Output Current
-5.2mA
Lead Free
Lead Free
Low Level Output Current
5.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
8
Number of Inputs
8
Package Quantity
2500
Packaging
Tape and Reel
Polarity
Inverting
Propagation Delay
29ns
Quiescent Current
4uA
RoHS Compliant
Yes
Series
74HC
Supply Voltage-Nom
6V
Technology
CMOS
Turn-On Delay Time
29ns
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics M74HC688TTR Datasheet
Download the complete datasheet for Stmicroelectronics M74HC688TTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

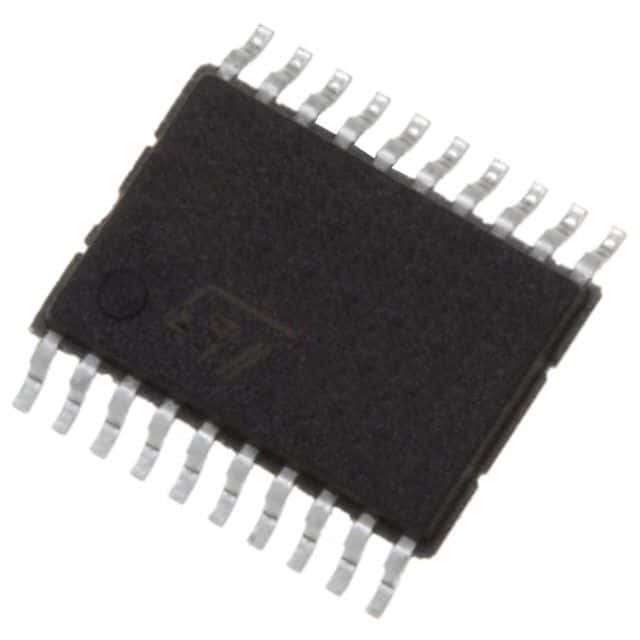

Product Images
