Hex 1-input inverter gate, part of the 74HCT series, features six independent inverter circuits. This CMOS technology component operates with a 5V supply voltage, ranging from 4.5V to 5.5V. It offers a high level output current of -4mA and a low level output current of 4mA, with a propagation delay of 18ns. Designed for surface mount applications, it is packaged in an SOIC (SOP-14) case. Operating temperature range is -55°C to 125°C.
PackageSOIC
Voltage5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics M74HCT04RM13TR technical specifications.
General
| Package/Case | SOIC |
| High Level Output Current | -4mA |
| Logic Function | Buffer, Inverter |
| Low Level Output Current | 4mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Circuits | 6 |
| Number of Elements | 6 |
| Number of Gates | 6 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 18ns |
| Quiescent Current | 1uA |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Series | 74HCT |
| Technology | CMOS |
| Turn-On Delay Time | 27ns |
| Voltage | 5V |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Stmicroelectronics M74HCT04RM13TR Datasheet
Download the complete datasheet for Stmicroelectronics M74HCT04RM13TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

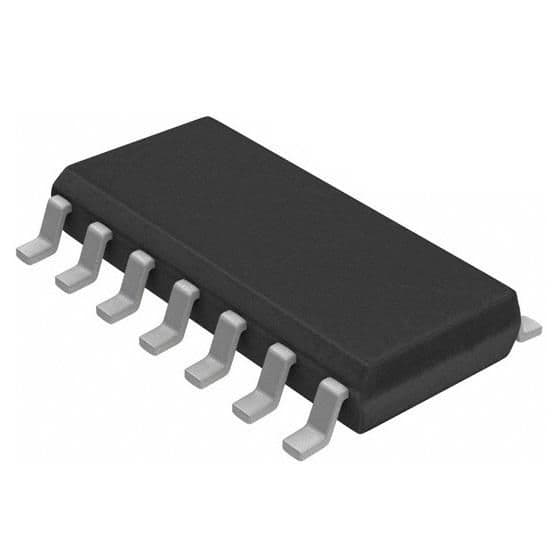

Product Images
