Dual D-Type Flip-Flop, positive edge-triggered, CMOS technology, operating at 48MHz with a 5V supply voltage. Features complementary outputs, single-ended inputs, and a propagation delay of 33ns. Housed in a 14-pin DIP package for through-hole mounting, this RoHS compliant component offers a wide operating temperature range from -55°C to 125°C.
Frequency48MHz
PackageDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Stmicroelectronics M74HCT74B1R technical specifications.
General
| Package/Case | DIP |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 48MHz |
| High Level Output Current | -4mA |
| Input Capacitance | 5pF |
| Input Type | SINGLE-ENDED |
| Lead Free | Lead Free |
| Logic Function | D-Type, Flip-Flop |
| Low Level Output Current | 4mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Bits | 2 |
| Number of Bits per Element | 1 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Input Lines | 1 |
| Number of Output Lines | 1 |
| Operating Supply Voltage | 5V |
| Output Current | 4mA |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 33ns |
| Quiescent Current | 2uA |
| RoHS Compliant | Yes |
| Series | 74HCT |
| Technology | CMOS |
| Turn-On Delay Time | 21ns |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics M74HCT74B1R Datasheet
Download the complete datasheet for Stmicroelectronics M74HCT74B1R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

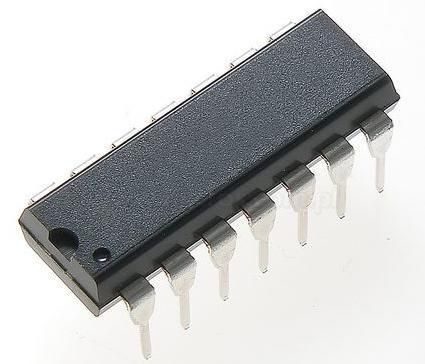

Product Images
