1Kb MICROWIRE serial access EEPROM, offering 128 x 8 organization and 200ns maximum access time. This non-volatile memory component operates with a serial interface supporting MICROWIRE protocol, with a maximum frequency of 2MHz. It features a wide supply voltage range from 2.5V to 5.5V and is available in a surface-mount SOIC package. RoHS compliant and lead-free, this EEPROM is designed for reliable data storage.
Frequency2MHz
PackageSOIC
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics M93C46-WMN6P technical specifications.
General
Access Time-Max
200ns
Package/Case
SOIC
Density
1Kb
Frequency
2MHz
Height
1.25mm
Interface
MICROWIRE, Serial
Lead Free
Lead Free
Length
4.9mm
Max Frequency
2MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
1Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Words
128
Organization
128 x 8
Package Quantity
2000
Packaging
Rail/Tube
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
2mA
Supply Voltage-Nom
5.5V
Width
3.9mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics M93C46-WMN6P Datasheet
Download the complete datasheet for Stmicroelectronics M93C46-WMN6P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

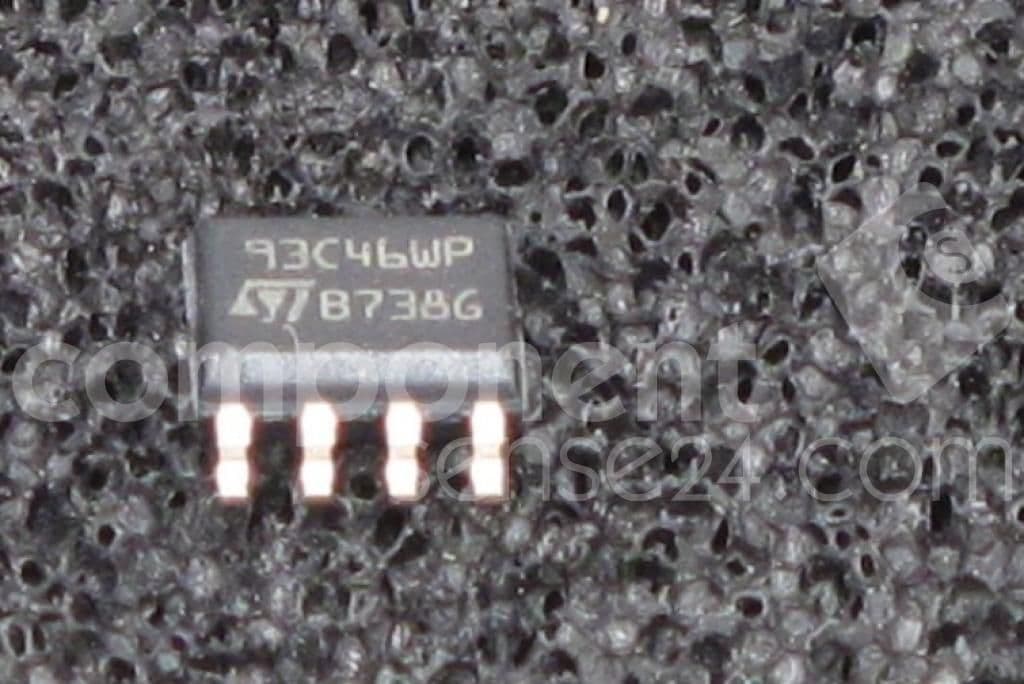

Product Images
