Adjustable DC-DC converter control circuit with a maximum output current of 1.5A and a maximum output voltage of 38V. Features a wide input voltage range from 3V to 40V and operates with a switching frequency up to 100kHz. This surface mount component, housed in an SO package, offers up to 89% efficiency and is RoHS compliant. Designed for boost topology, it supports both adjustable and fixed output voltage configurations, with a minimum output voltage of 1.25V.
PackageSO
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics MC34063EBD-TR technical specifications.
General
| Package/Case | SO |
| Efficiency | 89% |
| Height | 1.65mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Output Voltage | 38V |
| Min Output Voltage | 1.25V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 1.5A |
| Output Type | Adjustable, Fixed |
| Output Voltage | 1.25V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 100kHz |
| Synchronous Rectifier | No |
| Topology | Boost |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics MC34063EBD-TR Datasheet
Download the complete datasheet for Stmicroelectronics MC34063EBD-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

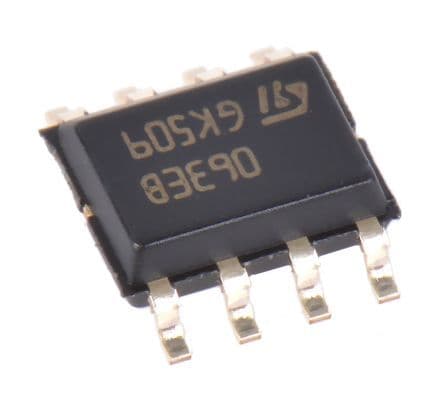

Product Images
