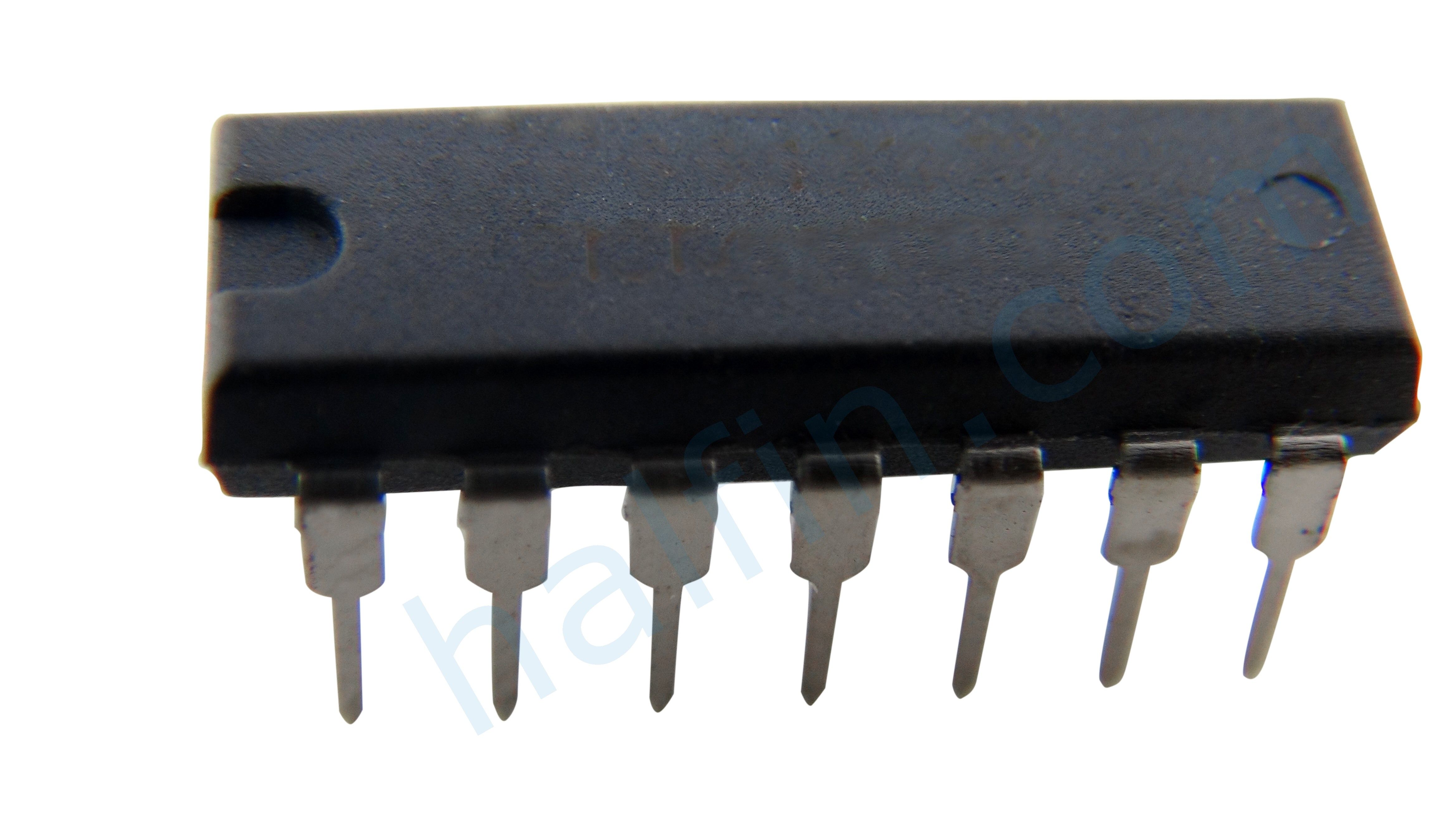

Dual bipolar timer IC featuring two independent timers. Operates with a supply voltage range of 4.5V to 16V and a supply current of 20mA. Offers an output current of 200mA with a maximum operating frequency of 500kHz. Packaged in a DIP through-hole mount, suitable for through-hole assembly.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics NE556N datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Current Rating | 20A |
| Frequency | 500kHz |
| Height | 3.3mm |
| High Level Output Current | -200mA |
| Length | 19.05mm |
| Low Level Output Current | 200mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Channels | 2 |
| Number of Timers/Counters | 2 |
| Operating Frequency | 500 kHz |
| Operating Supply Current | 20mA |
| Output Current | 200mA |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Quiescent Current | 4mA |
| Reach SVHC Compliant | No |
| Supply Current | 20mA |
| Weight | 0.057144oz |
| Width | 6.35mm |
| RoHS | Compliant |
Download the complete datasheet for Stmicroelectronics NE556N to view detailed technical specifications.
