600W Transient Voltage Suppressor (TVS) diode in a DO-15 package. Features bidirectional operation with a peak pulse power of 600W and peak pulse current of 123A. Offers a clamping voltage of 32.5V, with a breakdown voltage range of 17.1V to 18.9V. Designed for through-hole mounting, this RoHS compliant component operates from -65°C to 175°C and has a capacitance of 1.6nF.
PackageDO-15
Capacitance1.6nF
MountingThrough Hole
PolarityBidirectional
Quick Jump:
Technical Specifications
Stmicroelectronics P6KE18CA technical specifications.
General
Capacitance
1.6nF
Package/Case
DO-15
Clamping Voltage
32.5V
Clamping Voltage-Max
32.5V
Diameter
3.53mm
Diode Type
ZENER
Direction
Bidirectional
Height
3.53mm
Lead Free
Lead Free
Leakage Current
500uA
Length
6.75mm
Max Breakdown Voltage
18.9V
Min Breakdown Voltage
17.1V
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Reverse Leakage Current
1uA
Max Surge Current
1mA
Mount
Through Hole
Number of Bidirectional Channels
1
Number of Elements
1
Operating Supply Voltage
15.3V
Package Quantity
1000
Packaging
Tape and Reel
Peak Pulse Current
123A
Peak Pulse Power
600W
Polarity
Bidirectional
Power Dissipation
600W
Power Line Protection
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
17.1V
Reverse Standoff Voltage
15V
RoHS Compliant
Yes
Series
P6KE, TRANSIL™
Termination
Through Hole
DC Rated Voltage
18V
Width
3.53mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics P6KE18CA Datasheet
Download the complete datasheet for Stmicroelectronics P6KE18CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

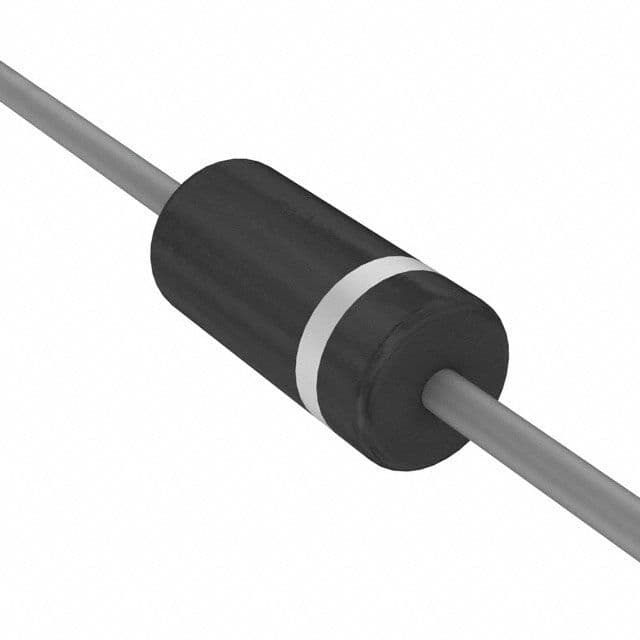

Product Images
