Positive voltage regulator IC, designed for battery charger applications. Features a fixed 13.7V output voltage with 1.5A maximum output current and 1% accuracy. Operates with a 16V to 40V input voltage range and a low dropout voltage of 2.1V. Housed in a TO-220 package for through-hole mounting, this RoHS compliant component offers a 58dB PSRR and operates from 0°C to 150°C.
PackageTO-220
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics PB137ACV technical specifications.
General
Accuracy
1%
Package/Case
TO-220
Dropout Voltage
2.1V
Height
9.15mm
Lead Free
Lead Free
Length
10.4mm
Max Input Voltage
40V
Min Input Voltage
16V
Max Operating Temperature
150°C
Min Operating Temperature
0°C
Max Output Current
1.5A
Min Output Voltage
13.7V
Mount
Through Hole
Nominal Output Voltage
13.7V
Number of Outputs
1
Number of Regulators
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
13.7V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
58dB
Quiescent Current
8mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PB137
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics PB137ACV Datasheet
Download the complete datasheet for Stmicroelectronics PB137ACV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

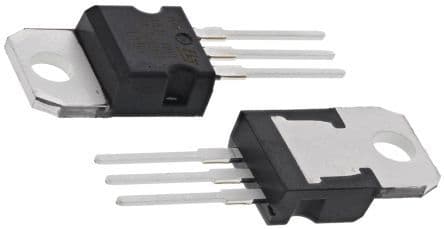

Product Images
