STMICROELECTRONICS

SD2931-10

Datasheet

150W RF DMOS Transistor, 125V, 230MHz, N-Channel

Stmicroelectronics

SD2931-10

Name: SD2931-10 Stmicroelectronics
Brand: Stmicroelectronics
SKU: SD2931-10

150W RF DMOS Transistor, 125V, 230MHz, N-Channel

N-channel RF transistor delivering 150W output power at 175MHz and 230MHz operating frequencies. Features a 125V drain-to-source breakdown voltage and 20A continuous drain current. Designed for high-frequency applications, this DMOS transistor offers 15dB gain and a maximum power dissipation of 389W. Housed in an M package for screw mounting, it operates across a wide temperature range from -65°C to 200°C and is RoHS compliant.

Frequency175MHz

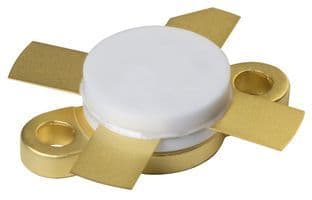

PackageM

Voltage Rating125V

MountingScrew

Quick Jump:

Technical Specifications

Stmicroelectronics SD2931-10 technical specifications.

General

Package/Case	M
Continuous Drain Current (ID)	20A
Drain to Source Breakdown Voltage	125V
Drain to Source Voltage (Vdss)	125V
DS Breakdown Voltage-Min	125V
Frequency	175MHz
Gain	15dB
Gate to Source Voltage (Vgs)	20V
Input Capacitance	480pF
Lead Free	Lead Free
Max Frequency	230MHz
Max Operating Temperature	200°C
Min Operating Temperature	-65°C
Max Output Power	150W
Max Power Dissipation	389W
Mount	Screw
Number of Elements	1
Operating Frequency	230 MHz
Output Power	150W
Package Quantity	50
Packaging	Bulk
Polarity	N-CHANNEL
Power Dissipation	389W
RoHS Compliant	Yes
Test Voltage	50V
Voltage Rating	125V
DC Rated Voltage	125V
