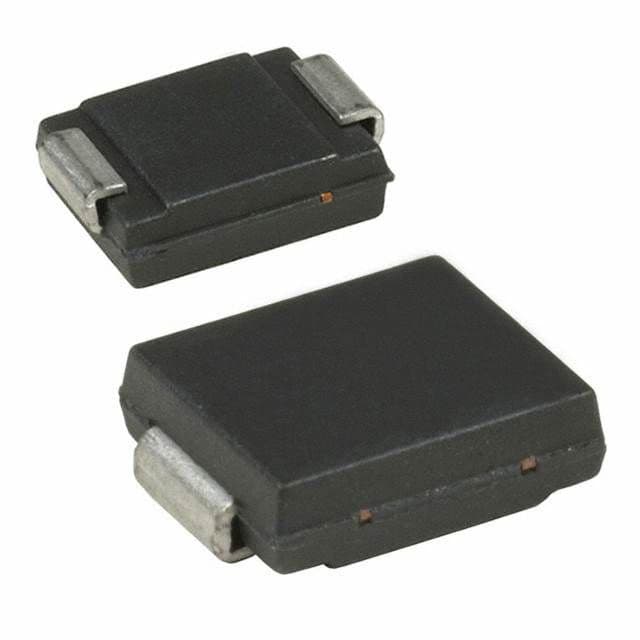

Bidirectional Transient Voltage Suppressor (TVS) diode in SMC package, offering 1.5kW peak pulse power and 169A peak pulse current. Features a 28.2V reverse standoff voltage, 31.4V minimum breakdown voltage, and 59V clamping voltage. Operates across a temperature range of -55°C to 150°C with a low leakage current of 200nA. Surface mountable with a capacitance of 2.7nF.
PackageSMC
Capacitance2.7nF
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
Stmicroelectronics SM15T33CA technical specifications.
General
Capacitance
2.7nF
Package/Case
SMC
Clamping Voltage
59V
Clamping Voltage-Max
59V
Diode Type
ZENER
Direction
Bidirectional
Height
2.45mm
Lead Free
Lead Free
Leakage Current
200nA
Length
7.15mm
Max Breakdown Voltage
34.7V
Min Breakdown Voltage
31.4V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.5kW
Max Reverse Leakage Current
1uA
Max Surge Current
1mA
Mount
Surface Mount
Number of Bidirectional Channels
1
Number of Elements
1
Operating Supply Voltage
28.2V
Package Quantity
1
Packaging
Tape and Reel
Peak Pulse Current
169A
Peak Pulse Power
1.5kW
Polarity
Bidirectional
Power Dissipation
1.5kW
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
31.4V
Reverse Standoff Voltage
28.2V
RoHS Compliant
Yes
Series
SM15T, TRANSIL™
Termination
SMD/SMT
DC Rated Voltage
33V
Width
6.25mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics SM15T33CA Datasheet
Download the complete datasheet for Stmicroelectronics SM15T33CA to view detailed technical specifications.
