Bidirectional Transient Voltage Suppressor (TVS) diode offering 1.5kW peak pulse power dissipation. Features a 58.1V reverse standoff voltage and 64.6V minimum breakdown voltage, with a clamping voltage of 121V. This single-channel device has a low leakage current of 200nA and 1.55nF capacitance, suitable for surface mount applications in an SMC package. Operates across a wide temperature range from -55°C to 150°C.
PackageSMC
Capacitance1.55nF
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
Stmicroelectronics SM15T68CA technical specifications.
General
| Capacitance | 1.55nF |
| Package/Case | SMC |
| Clamping Voltage | 121V |
| Clamping Voltage-Max | 121V |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Height | 2.45mm |
| Lead Free | Lead Free |
| Leakage Current | 200nA |
| Length | 7.15mm |
| Max Breakdown Voltage | 71.4V |
| Min Breakdown Voltage | 64.6V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.5kW |
| Max Reverse Leakage Current | 200nA |
| Max Surge Current | 1mA |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 58.1V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 83A |
| Peak Pulse Power | 1.5kW |
| Polarity | Bidirectional |
| Power Dissipation | 1.5kW |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 64.6V |
| Reverse Standoff Voltage | 58.1V |
| RoHS Compliant | Yes |
| Series | SM15T, TRANSIL™ |
| Termination | SMD/SMT |
| DC Rated Voltage | 68V |
| Width | 6.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics SM15T68CA Datasheet
Download the complete datasheet for Stmicroelectronics SM15T68CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

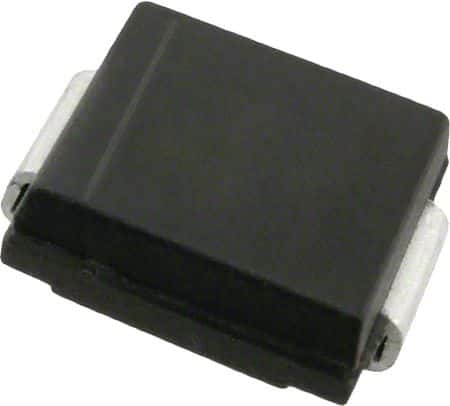

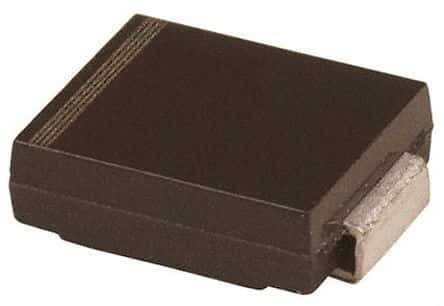

Product Images
