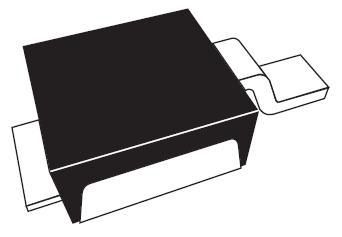

Unidirectional Transient Voltage Suppressor (TVS) diode offering 200W peak pulse power dissipation. Features a 12V reverse standoff voltage and 13.3V minimum breakdown voltage, with a clamping voltage of 19.9V. Designed for surface mount applications in a DO-216AA package, it operates across a wide temperature range of -65°C to 150°C. This lead-free and RoHS compliant component exhibits a low leakage current of 1µA and a capacitance of 650pF.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics SM2T14A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Stmicroelectronics SM2T14A technical specifications.
| Capacitance | 650pF |
| Package/Case | DO-216AA |
| Clamping Voltage | 19.9V |
| Diode Type | ZENER |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Min Breakdown Voltage | 13.3V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Surge Current | 9A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 12V |
| Package Quantity | 12000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 9A |
| Peak Pulse Power | 200W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reverse Breakdown Voltage | 13.3V |
| Reverse Standoff Voltage | 12V |
| RoHS Compliant | Yes |
| Series | SM2T, TRANSIL™ |
| RoHS | Compliant |
