PackageDO-214AB
Voltage Rating26V
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
Stmicroelectronics SM30T30CAY technical specifications.
General
| Package/Case | DO-214AB |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Lead Free | Lead Free |
| Max Breakdown Voltage | 31.9V |
| Min Breakdown Voltage | 28.9V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 3kW |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Peak Pulse Current | 71.3A |
| Peak Pulse Power | 3kW |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 26V |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101, SM30TY, TRANSIL™ |
| Working Voltage | 26V |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics SM30T30CAY Datasheet
Download the complete datasheet for Stmicroelectronics SM30T30CAY to view detailed technical specifications.
No datasheet is available for this part.

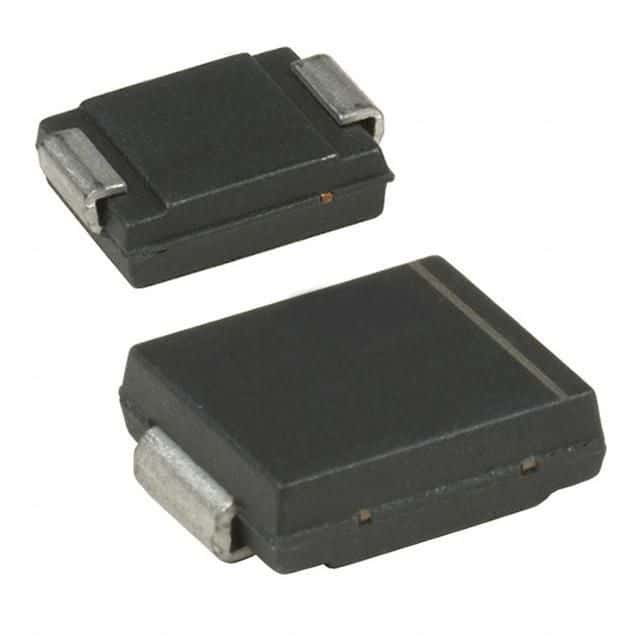

Product Images
