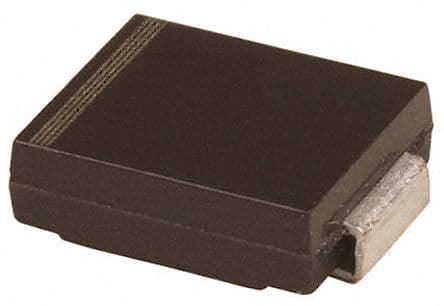

Unidirectional Transient Voltage Suppressor (TVS) diode in SMC package, offering 1.5kW peak pulse power and 120A peak pulse current. Features a 5V reverse standoff voltage, 6V reverse breakdown voltage, and a clamping voltage of 7.6V (max 8.5V). Operates across a wide temperature range of -65°C to 175°C with a low leakage current of 300µA. This surface mount component is RoHS compliant and designed for power line protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics SM5908 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Stmicroelectronics SM5908 technical specifications.
| Capacitance | 9.5nF |
| Package/Case | SMC |
| Clamping Voltage | 7.6V |
| Clamping Voltage-Max | 8.5V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Height | 2.45mm |
| Lead Free | Lead Free |
| Leakage Current | 300uA |
| Length | 7.15mm |
| Max Breakdown Voltage | 6V |
| Min Breakdown Voltage | 6V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 5W |
| Max Reverse Leakage Current | 300uA |
| Max Surge Current | 60A |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 120A |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Power Dissipation | 1.5kW |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 6V |
| Reverse Standoff Voltage | 5V |
| RoHS Compliant | Yes |
| Series | TRANSIL™ |
| Termination | SMD/SMT |
| DC Rated Voltage | 5V |
| Width | 6.25mm |
| RoHS | Compliant |
