Automotive 600W TVS diode in SMB package, offering bidirectional transient voltage suppression. Features a breakdown voltage range of 6.45V to 7.1V with a reverse standoff voltage of 5.8V. Operates across a wide temperature range from -55°C to 150°C, with a maximum power dissipation of 600W and a peak pulse current capability of 298A. This lead-free, RoHS compliant component is designed for surface mounting and is supplied on tape and reel.
PackageSMB
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
Stmicroelectronics SM6T6V8CAY technical specifications.
General
| Package/Case | SMB |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Height | 2.45mm |
| Lead Free | Lead Free |
| Length | 4.6mm |
| Max Breakdown Voltage | 7.1V |
| Min Breakdown Voltage | 6.45V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 600W |
| Max Reverse Leakage Current | 20uA |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 298A |
| Peak Pulse Power | 600W |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 5.8V |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101, SM6TY, TRANSIL™ |
| Termination | SMD/SMT |
| Width | 3.95mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics SM6T6V8CAY Datasheet
Download the complete datasheet for Stmicroelectronics SM6T6V8CAY to view detailed technical specifications.
No datasheet is available for this part.

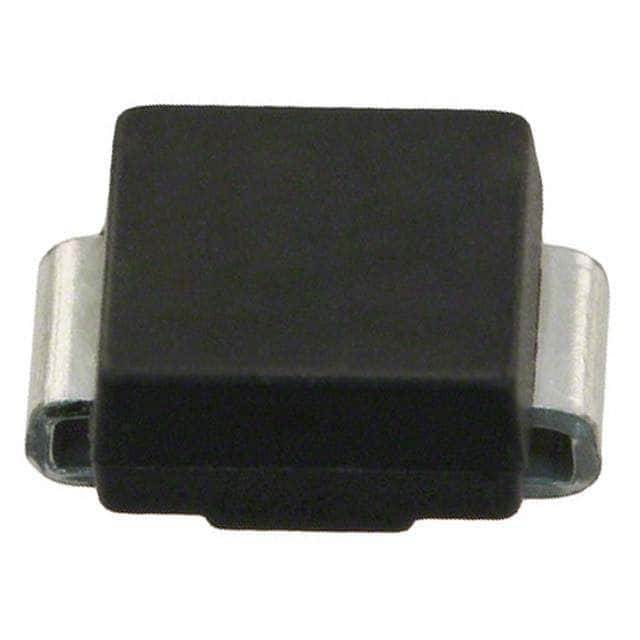

Product Images
