Bidirectional Transient Voltage Suppressor (TVS) diode in SMA package, offering 400W peak pulse power and 25A peak pulse current. Features a 43V reverse standoff voltage, 47.8V minimum breakdown voltage, and 91V clamping voltage. Designed for surface mount with a 3.3W power dissipation and 350pF capacitance. Operates across a wide temperature range of -55°C to 150°C, providing ESD protection and RoHS compliance.
PackageSMA
Capacitance350pF
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
Stmicroelectronics SMAJ43CA-TR technical specifications.
General
| Capacitance | 350pF |
| Package/Case | SMA |
| Clamping Voltage | 91V |
| Diode Type | ZENER |
| Direction | Bidirectional |
| ESD Protection | Yes |
| Height | 2.03mm |
| Lead Free | Lead Free |
| Leakage Current | 200nA |
| Length | 4.6mm |
| Max Breakdown Voltage | 50.3V |
| Min Breakdown Voltage | 47.8V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Reverse Leakage Current | 200nA |
| Max Surge Current | 1mA |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 43V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 25A |
| Peak Pulse Power | 400W |
| Polarity | Bidirectional |
| Power Dissipation | 3.3W |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 47.8V |
| Reverse Standoff Voltage | 43V |
| RoHS Compliant | Yes |
| Series | SMAJ, TRANSIL™ |
| DC Rated Voltage | 43V |
| Width | 2.95mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics SMAJ43CA-TR Datasheet
Download the complete datasheet for Stmicroelectronics SMAJ43CA-TR to view detailed technical specifications.
No datasheet is available for this part.

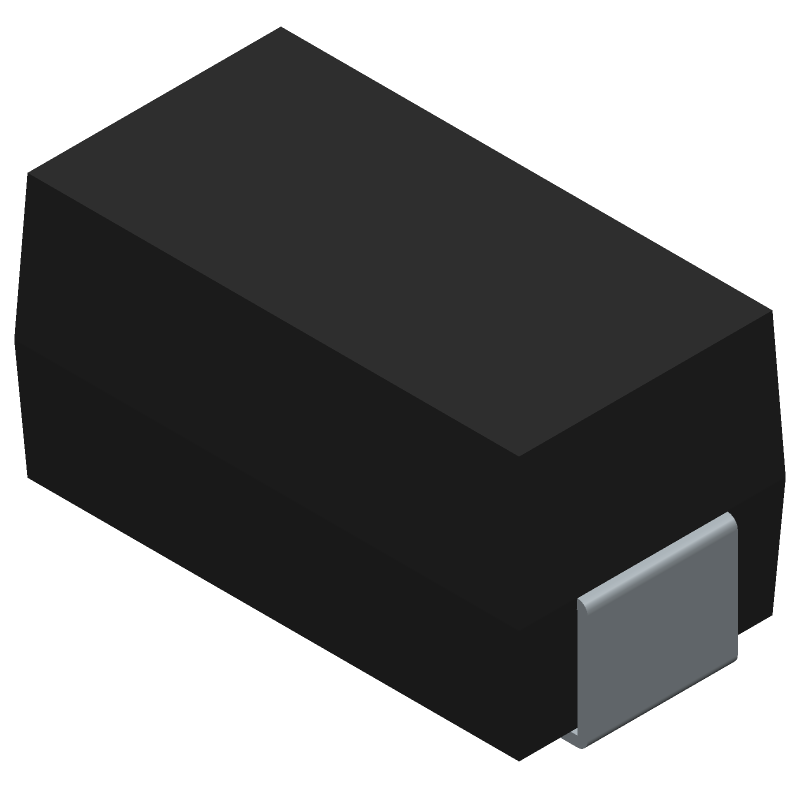

Product Images
