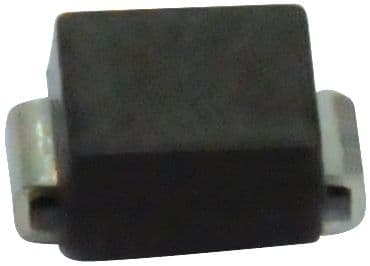

Bidirectional thyristor surge protection device, 140V minimum breakdown voltage, 190V clamping voltage, and 24A surge current capability. Features a 150mA hold current, 65pF capacitance, and operates over a -55°C to 150°C temperature range. Packaged in a DO-214AA surface mount case, this RoHS compliant component offers 400A peak pulse current handling.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics SMP100LC-140 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 65pF |
| Package/Case | DO-214AA |
| Clamping Voltage | 190V |
| Direction | Bidirectional |
| Height | 2.45mm |
| Hold Current | 150mA |
| Lead Free | Lead Free |
| Length | 4.6mm |
| Min Breakdown Voltage | 140V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 140V |
| Max Reverse Leakage Current | 2uA |
| Max Surge Current | 100A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 126V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 400A |
| Polarity | Bidirectional |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 126V |
| RoHS Compliant | Yes |
| Series | SMP, TRISIL™ |
| Termination | SMD/SMT |
| Width | 3.95mm |
| RoHS | Compliant |
