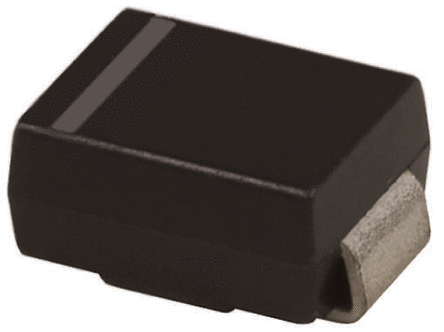

Bidirectional Thyristor Surge Protection Device, 25V DC Rated Voltage, 40V Max Breakdown Voltage, and 25V Max Repetitive Reverse Voltage. Features a 100A Max Surge Current, 400A Peak Pulse Current, and 150mA Hold Current. Packaged in a DO-214AA surface mount case with 2-pin termination. Operates from -40°C to 150°C, offering ESD protection and RoHS compliance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics SMP100LC-25 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Stmicroelectronics SMP100LC-25 technical specifications.
| Capacitance | 65pF |
| Package/Case | DO-214AA |
| Direction | Bidirectional |
| ESD Protection | Yes |
| Height | 2.25mm |
| Hold Current | 150mA |
| Lead Free | Lead Free |
| Length | 4.6mm |
| Max Breakdown Voltage | 40V |
| Min Breakdown Voltage | 25V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 25V |
| Max Reverse Leakage Current | 2uA |
| Max Surge Current | 100A |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Operating Supply Voltage | 22V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 400A |
| Polarity | Bidirectional |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 22V |
| RoHS Compliant | Yes |
| Series | SMP, TRISIL™ |
| Termination | SMD/SMT |
| DC Rated Voltage | 25V |
| Width | 3.95mm |
| RoHS | Compliant |
