Bidirectional thyristor surge protection device for surface mount applications. Features a minimum breakdown voltage of 270V, maximum repetitive reverse voltage of 270V, and a clamping voltage of 335V. Offers a maximum surge current capability of 100A and peak pulse current of 400A. Operates within a temperature range of -40°C to 150°C, with a hold current of 150mA. Packaged in a DO-214AA case, this RoHS compliant component is supplied on tape and reel.
PackageDO-214AA
Capacitance60pF
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
Stmicroelectronics SMP100LC-270 technical specifications.
General
Capacitance
60pF
Package/Case
DO-214AA
Clamping Voltage
335V
Direction
Bidirectional
Height
2.45mm
Hold Current
150mA
Lead Free
Lead Free
Length
4.6mm
Max Breakdown Voltage
345V
Min Breakdown Voltage
270V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
270V
Max Reverse Leakage Current
2uA
Max Surge Current
100A
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
243V
Package Quantity
2500
Packaging
Tape and Reel
Peak Pulse Current
400A
Polarity
Bidirectional
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Standoff Voltage
243V
RoHS Compliant
Yes
Series
SMP, TRISIL™
Termination
SMD/SMT
Weight
0.00388oz
Width
3.95mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics SMP100LC-270 Datasheet
Download the complete datasheet for Stmicroelectronics SMP100LC-270 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

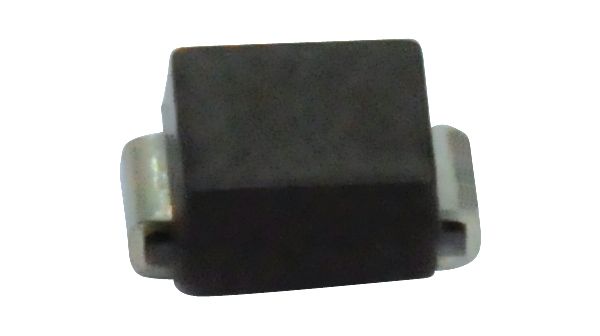

Product Images
