Specialty consumer circuit, a reset timer IC in a DFN package, features a 1.05mm width, 1.5mm length, and 0.6mm height for surface mounting. Operating within a 2V to 5.5V supply voltage range, it monitors a single voltage with reset threshold voltages from 300mV to 5.5V. This RoHS compliant component offers an active low reset and operates from -40°C to 85°C.
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics SR1UARU technical specifications.
General
| Package/Case | DFN |
| Height | 0.6mm |
| Lead Free | Lead Free |
| Length | 1.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 5.5V |
| Min Reset Threshold Voltage | 300mV |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Voltages Monitored | 1 |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| RoHS Compliant | Yes |
| Series | Smart Reset™ |
| Type | Reset Timer |
| Weight | 0.000744oz |
| Width | 1.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics SR1UARU Datasheet
Download the complete datasheet for Stmicroelectronics SR1UARU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

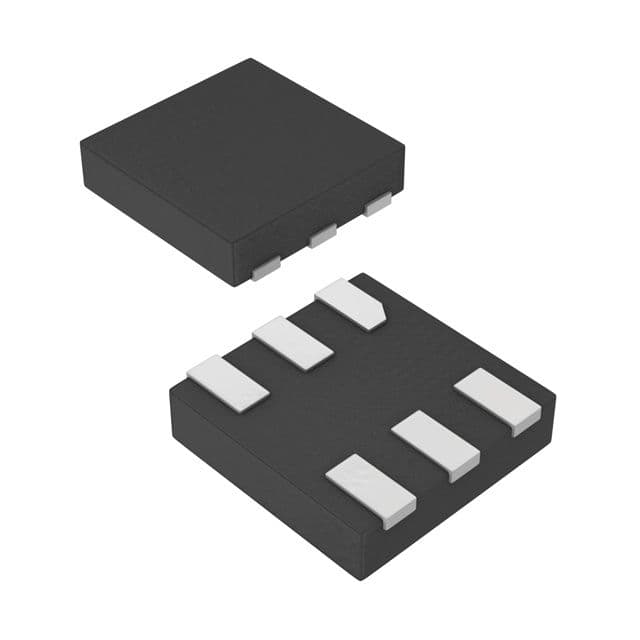

Product Images
