Monolithic synchronous step-down regulator, a surface mount DC/DC controller, offers adjustable output voltage from 800mV to 15.3V with a maximum output current of 3A. Operating from a 2.5V to 18V input, this DFN package component achieves up to 90% efficiency and a 1.1MHz switching frequency. It features a 90% maximum duty cycle, 2.5mA quiescent current, and operates within a -25°C to 125°C temperature range. This RoHS compliant component is supplied on tape and reel.
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics ST1S10PUR technical specifications.
General
Package/Case
DFN
Efficiency
90%
Height
0.9mm
Lead Free
Lead Free
Length
4mm
Max Duty Cycle
90%
Max Input Voltage
18V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-25°C
Max Output Current
3A
Max Output Voltage
15.3V
Min Output Voltage
800mV
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
18V
Output Current
3A
Output Type
Adjustable
Output Voltage
15.3V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
2.5mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Switching Frequency-Max
1.1MHz
Synchronous Rectifier
Yes
Weight
0.001319oz
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics ST1S10PUR Datasheet
Download the complete datasheet for Stmicroelectronics ST1S10PUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

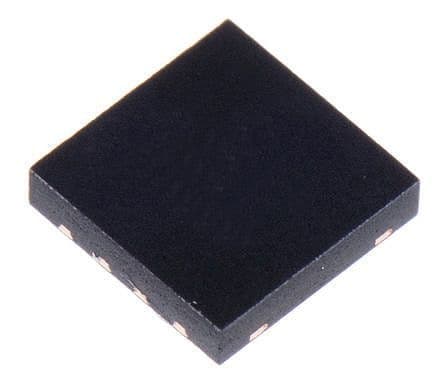

Product Images
