Step-down DC-DC controller and regulator with adjustable output voltage from 400mV to 43.2V, capable of delivering up to 3A output current. Features a wide input voltage range of 5.5V to 48V and a maximum switching frequency of 850kHz. This surface-mount component is housed in a lead-free HSOP package measuring 5mm x 4mm x 1.6mm, operating within a temperature range of -40°C to 150°C. Supplied on tape and reel in quantities of 2500, it is RoHS compliant.
PackageHSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics ST1S14PHR technical specifications.
General
Package/Case
HSOP
Height
1.6mm
Lead Free
Lead Free
Length
5mm
Max Input Voltage
48V
Min Input Voltage
5.5V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
43.2V
Min Output Voltage
1.22V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
48V
Output Configuration
Positive
Output Current
3A
Output Type
Adjustable
Output Voltage
400mV
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ST1S14
Switching Frequency-Max
850kHz
Synchronous Rectifier
No
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics ST1S14PHR Datasheet
Download the complete datasheet for Stmicroelectronics ST1S14PHR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

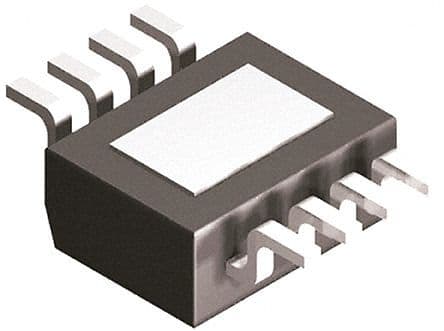

Product Images
