Dual RS-232 bus transceiver, surface mount, SOIC package. Features two transmitters and two receivers, supporting a 400Kbps data rate. Operates with a 5V supply voltage, with a range of 4.5V to 5.5V. RoHS compliant and lead-free, with a maximum operating temperature of 70°C.
PackageSOIC
Current10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics ST202ECDR technical specifications.
General
Package/Case
SOIC
Data Rate
400Kbps
Height
2.45mm
Interface
RS-232
Lead Free
Lead Free
Length
10.5mm
Logic Function
Receiver
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Channels
2
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
10mA
Termination
SMD/SMT
Width
7.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics ST202ECDR Datasheet
Download the complete datasheet for Stmicroelectronics ST202ECDR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

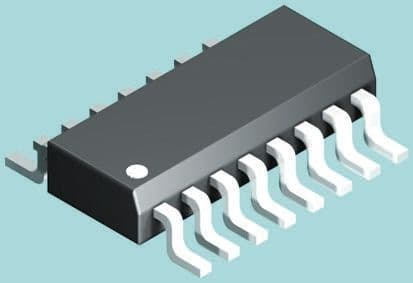

Product Images
