Dual RS-232 transmitter/receiver bus transceiver, surface mountable in a 16-pin SO package. Features 2 transmitters and 2 receivers for full-duplex communication up to 400Kbps. Operates with a supply voltage range of 3V to 5.5V, with a typical 5V operating voltage and 5.4V output voltage. Offers a wide operating temperature range from -40°C to 85°C. RoHS compliant and lead-free.
PackageSO
Current300uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics ST3232BDR technical specifications.
General
Package/Case
SO
Data Rate
400Kbps
Height
1.65mm
Interface
RS-232
Lead Free
Lead Free
Length
10mm
Logic Function
Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Voltage
5V
Output Voltage
5.4V
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
Receiver Hysteresis
300mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
300uA
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics ST3232BDR Datasheet
Download the complete datasheet for Stmicroelectronics ST3232BDR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

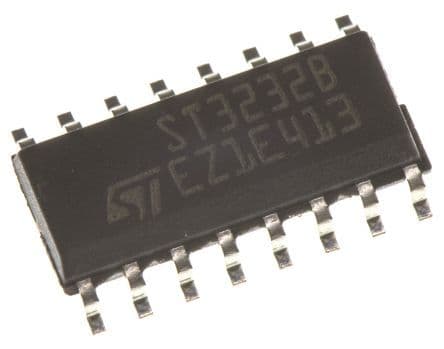

Product Images
