Dual RS-232 transceiver for surface mount applications, featuring two transmitters and two receivers. This integrated circuit operates with a supply voltage range of 3V to 5.5V, supporting a data rate of up to 250Kbps. The component is housed in a 16-pin SOIC package with dimensions of 10mm (length) x 4mm (width) x 1.65mm (height). It offers an output voltage of 13.2V and is RoHS compliant.
PackageSOIC
Current300uA
MountingSurface Mount
PolarityInverting
Quick Jump:
Technical Specifications
Stmicroelectronics ST3232EBDR technical specifications.
General
Package/Case
SOIC
Data Rate
250Kbps
Height
1.65mm
Interface
RS-232
Lead Free
Lead Free
Length
10mm
Logic Function
Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Channels
2
Number of Drivers
2
Number of Input Lines
4
Number of Output Lines
4
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Voltage
5V
Output Voltage
13.2V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Inverting
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
300uA
Termination
SMD/SMT
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics ST3232EBDR Datasheet
Download the complete datasheet for Stmicroelectronics ST3232EBDR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

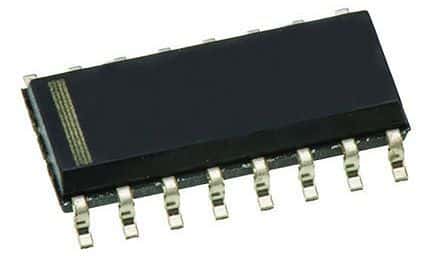

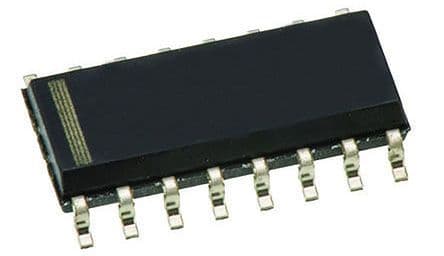

Product Images
