Single transmitter/receiver bus transceiver supporting RS-422 and RS-485 interfaces. Features a 15Mbps data rate and operates from a 3V to 3.6V supply voltage, with a typical 3.3V operating voltage. This surface mount component is housed in a compact SOIC package (5mm L x 4mm W x 1.25mm H) and offers half-duplex communication. It is RoHS compliant and suitable for operation across a -40°C to 85°C temperature range.
PackageSOIC
Current2.2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics ST3485EBDR technical specifications.
General
Package/Case
SOIC
Data Rate
15Mbps
Height
1.25mm
Interface
RS-422, RS-485
Lead Free
Lead Free
Length
5mm
Logic Function
Transceiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Receiver Hysteresis
70mV
RoHS Compliant
Yes
Simplex/Duplex
Half Duplex
Supply Current
2.2mA
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics ST3485EBDR Datasheet
Download the complete datasheet for Stmicroelectronics ST3485EBDR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

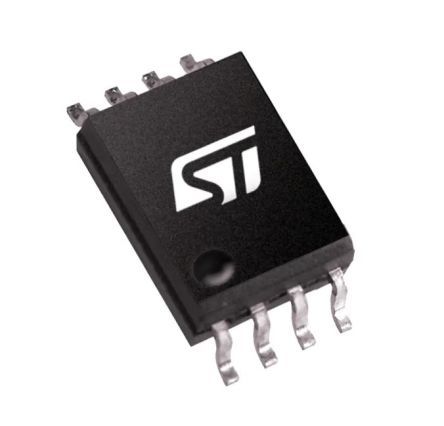

Product Images
