Single channel RS-422/RS-485 bus transceiver, surface mountable in an 8-pin SOIC package. Features a 5Mbps data rate, 5V operating supply voltage, and supports half-duplex communication. Operates across a temperature range of -40°C to 85°C with a maximum supply voltage of 5.25V. RoHS compliant and lead-free.
PackageSOIC
Current500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics ST485EBDR technical specifications.
General
Package/Case
SOIC
Data Rate
5Mbps
Height
1.25mm
Interface
RS-422, RS-485
Lead Free
Lead Free
Length
5mm
Logic Function
Transceiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Surface Mount
Number of Channels
1
Number of Drivers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Voltage
5V
Package Quantity
2500
Packaging
Tape and Reel
Reach SVHC Compliant
No
Receiver Hysteresis
70mV
RoHS Compliant
Yes
Simplex/Duplex
Half Duplex
Supply Current
500mA
Termination
SMD/SMT
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics ST485EBDR Datasheet
Download the complete datasheet for Stmicroelectronics ST485EBDR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

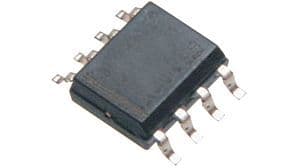

Product Images
