Adjustable positive linear voltage regulator with 85mA output current and 500mV dropout voltage. Features a wide input voltage range from 2.5V to 24V, with a maximum output voltage of 23V. Operates across a temperature range of -40°C to 125°C and offers a low quiescent current of 5.5uA. Packaged in a SOT-23-5 surface mount case, this RoHS compliant component is supplied on tape and reel.
PackageSOT-23-5
MountingSurface Mount
PolarityPositive
Power1W
Quick Jump:
Technical Specifications
Stmicroelectronics ST715MR technical specifications.
General
Package/Case
SOT-23-5
Dropout Voltage
500mV
Lead Free
Lead Free
Max Input Voltage (DC)
24V
Max Input Voltage
24V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
85mA
Max Output Voltage
23V
Min Output Voltage
1.2V
Max Power Dissipation
1W
Max Supply Current
6.5uA
Mount
Surface Mount
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
85mA
Output Type
Adjustable
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
1W
Power Supply Rejection Ratio (PSRR)
45dB
Quiescent Current
5.5uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics ST715MR Datasheet
Download the complete datasheet for Stmicroelectronics ST715MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

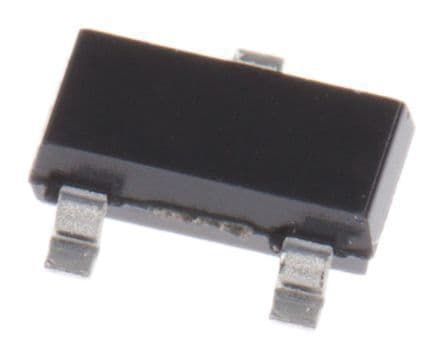

Product Images
