8-bit microcontroller featuring 16KB FLASH memory and 768B RAM. Operates at up to 8MHz with an 8us access time. Includes SPI and SCI interfaces, 3 timers, 2 PWM channels, and 26 I/O lines. Supports surface mount installation in an LQFP package. Rated for industrial temperature range (-40°C to 85°C) with a 4.5V to 5.5V operating supply voltage.
Frequency8MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics ST7FMC2S4T6 technical specifications.
General
Access Time
8us
Package/Case
LQFP
Data Bus Width
8b
Density
16KB
Frequency
8MHz
Height
1.47mm
Interface
SPI, SCI
JESD-30 Code
S-PQFP-G44
Lead Free
Lead Free
Length
8.7mm
Max Frequency
8MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
500mW
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of I/O Lines
26
Number of I/Os
26
Number of Programmable I/O
60
Number of PWM Channels
2
Number of Timers/Counters
3
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Body Material
Plastic
Package Quantity
160
Package Shape
Square
Packaging
Tray
Peak Reflow Temperature (Cel)
260°C
Peripherals
POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
768B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ST7
Surface Mount
Yes
Temperature Grade
INDUSTRIAL
Terminal Finish
Nickel
Terminal Form
Gull Wing
Terminal Position
QUAD
Termination
SMD/SMT
Watchdog Timer
Yes
Width
3.8mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics ST7FMC2S4T6 Datasheet
Download the complete datasheet for Stmicroelectronics ST7FMC2S4T6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

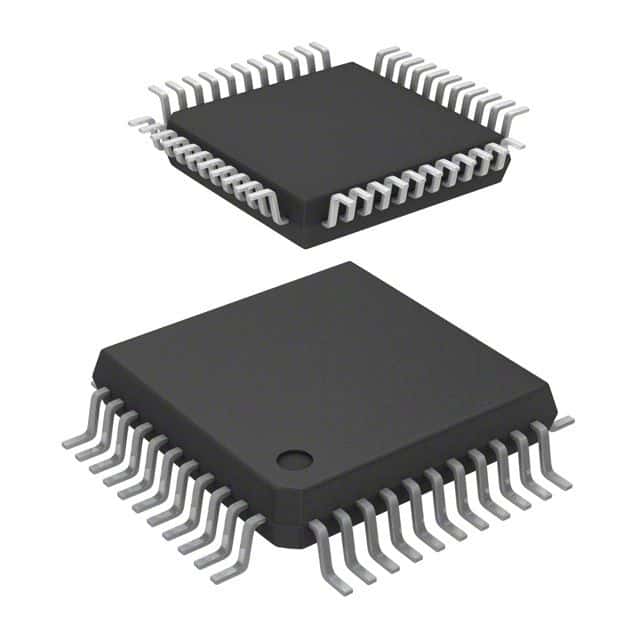

Product Images
