The STA50013TR is a surface mount power IC with a maximum operating temperature of 70°C and a minimum operating temperature of 0°C. It can handle a maximum output power of 60W and operates within a supply voltage range of 9V to 40V. The IC is lead free and RoHS compliant, packaged in a SO-36 package, and available in quantities of 600 per reel. It is designed for use in a single supply type configuration.
Current80mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STA50013TR technical specifications.
General
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Power | 60W |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 9V |
| Mount | Surface Mount |
| Operating Supply Voltage | 28V |
| Package Quantity | 600 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | STA500 |
| Supply Current | 80mA |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STA50013TR Datasheet
Download the complete datasheet for Stmicroelectronics STA50013TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

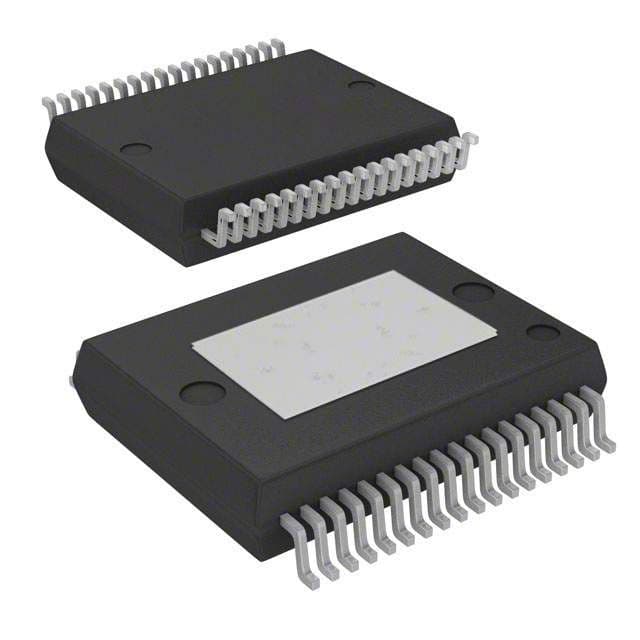

Product Images
