N-channel MDmesh™ Power MOSFET featuring 800V drain-source breakdown voltage and 11A continuous drain current. Surface mount D2PAK package offers 400mΩ maximum drain-source on-resistance. Key switching characteristics include a 15ns fall time, 22ns turn-on delay, and 46ns turn-off delay. Maximum power dissipation is 150W with an operating temperature range of -65°C to 150°C.
PackageD2PAK
Current Rating11A
MountingSurface Mount
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Stmicroelectronics STB11NM80T4 technical specifications.
General
Package/Case
D2PAK
Continuous Drain Current (ID)
11A
Current Rating
11A
Drain to Source Breakdown Voltage
800V
Drain to Source Resistance
400mR
Drain to Source Voltage (Vdss)
800V
Drain-source On Resistance-Max
400mR
Fall Time
15ns
Gate to Source Voltage (Vgs)
30V
Height
4.6mm
Input Capacitance
1.63nF
Lead Free
Lead Free
Length
10.75mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
150W
Mount
Surface Mount
Number of Elements
1
Package Quantity
1
Packaging
Tape and Reel
Polarity
N-CHANNEL
Power Dissipation
150W
Radiation Hardening
No
Rds On Max
400mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MDmesh™
Threshold Voltage
4V
Turn-Off Delay Time
46ns
Turn-On Delay Time
22ns
DC Rated Voltage
800V
Width
10.4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STB11NM80T4 Datasheet
Download the complete datasheet for Stmicroelectronics STB11NM80T4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

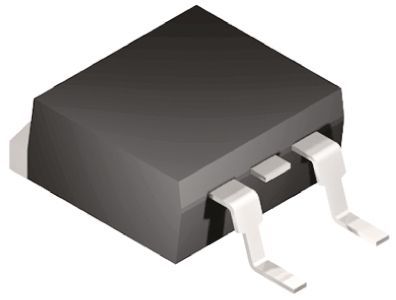

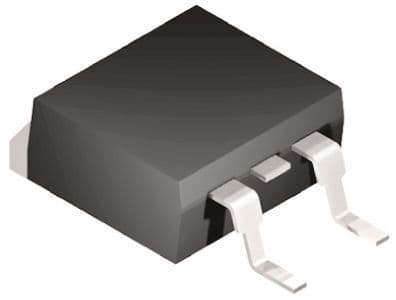

Product Images
