Linear battery charger IC for single-cell Lithium-Ion batteries, featuring a maximum charge current of 800mA and an output voltage of 4.2V. This surface-mount component operates with a maximum input voltage of 10V and a maximum supply voltage of 6.5V. Housed in a compact 6-pin DFN package with dimensions of 3.1mm x 3.1mm x 0.95mm, it offers a wide operating temperature range from -40°C to 85°C and is RoHS compliant.
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STBC08PMR technical specifications.
General
Battery Chemistry
LITHIUM-ION
Battery Pack Voltage
4.2V
Battery Type
LITHIUM-ION
Package/Case
DFN
Height
0.95mm
Lead Free
Lead Free
Length
3.1mm
Max Charge Current
800mA
Max Input Voltage
10V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
800mA
Max Output Voltage
4.242V
Min Output Voltage
4.158V
Max Supply Voltage
6.5V
Min Supply Voltage
4.25V
Mount
Surface Mount
Nominal Input Voltage
6.5V
Nominal Supply Current
150uA
Number of Cells
1
Number of Channels
1
Number of Outputs
1
Output Current
800mA
Output Voltage
4.2V
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STBC08PMR Datasheet
Download the complete datasheet for Stmicroelectronics STBC08PMR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

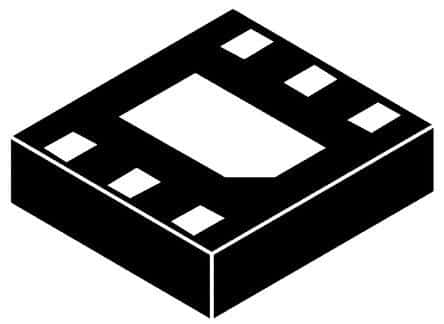

Product Images
