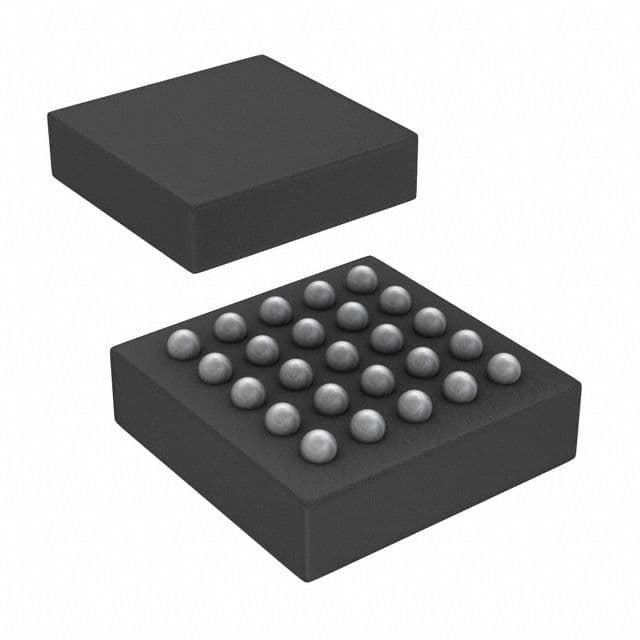

The STCF06TBR is a single output driver IC with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It operates at a maximum switching frequency of 1.8MHz and has a maximum power dissipation of 800mW. The IC is packaged in a TFBGA package, suitable for surface mount applications. It is RoHS compliant and has a maximum supply voltage of 5.5V and a minimum supply voltage of 2.7V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics STCF06TBR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TFBGA |
| Frequency | 1.8MHz |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Segments | 1 |
| Output Current per Channel | 1.5A |
| Output Voltage | 5V |
| Package Quantity | 3500 |
| Packaging | Tape and Reel |
| Power Dissipation | 800mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 1.8MHz |
| RoHS | Compliant |
