1.5A constant current LED driver, an integrated circuit designed for driving LEDs with precise current control. Features PWM dimming capability and a single output channel capable of delivering up to 1.5A. Operates with input voltages ranging from 4.5V to 40V, and supports a maximum supply voltage of 40V with a low supply current of 3µA. Packaged in a surface-mount SOIC case, this RoHS compliant component operates across a wide temperature range of -40°C to 150°C.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STCS1APHR technical specifications.
General
Package/Case
SOIC
Dimming
PWM
High Level Output Current
1.5A
Lead Free
Lead Free
Max Input Voltage
40V
Min Input Voltage
4.5V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Supply Current
3uA
Max Supply Voltage
40V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Outputs
1
Output Current
1.5A
Output Current per Channel
1.5A
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Switching Frequency-Max
50kHz
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STCS1APHR Datasheet
Download the complete datasheet for Stmicroelectronics STCS1APHR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

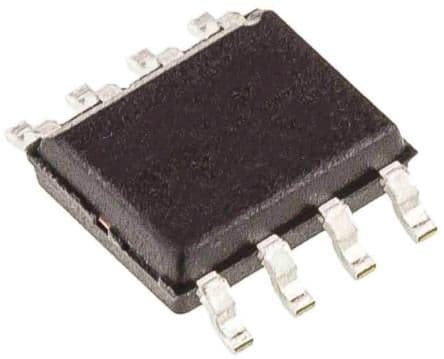

Product Images
