N-channel power MOSFET featuring 100V drain-source breakdown voltage and 25A continuous drain current. Offers low 30mΩ drain-source on-resistance at a nominal 2.5V gate-source voltage. Designed for surface mount applications in a DPAK package, this component operates from -55°C to 175°C with a maximum power dissipation of 100W. Includes fast switching characteristics with turn-on delay of 20ns and fall time of 20ns.
PackageDPAK
Voltage100V
Current17A
Current Rating25A
Quick Jump:
Technical Specifications
Stmicroelectronics STD25NF10LT4 technical specifications.
General
Package/Case
DPAK
Continuous Drain Current (ID)
25A
Current
17A
Current Rating
25A
Drain to Source Breakdown Voltage
100V
Drain to Source Resistance
30mR
Drain to Source Voltage (Vdss)
100V
Drain-source On Resistance-Max
35mR
Fall Time
20ns
Gate to Source Voltage (Vgs)
16V
Height
2.4mm
Input Capacitance
1.71nF
Lead Free
Lead Free
Length
6.6mm
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
100W
Mount
Surface Mount
Nominal Vgs
2.5V
Number of Elements
1
Package Quantity
2500
Packaging
Tape and Reel
Polarity
N-CHANNEL
Power Dissipation
100W
Rds On Max
35mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STripFET™ II
Threshold Voltage
2.5V
Turn-Off Delay Time
58ns
Turn-On Delay Time
20ns
Voltage
100V
DC Rated Voltage
100V
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STD25NF10LT4 Datasheet
Download the complete datasheet for Stmicroelectronics STD25NF10LT4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

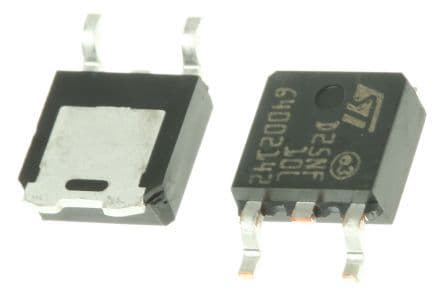

Product Images
