N-channel power MOSFET featuring 100V drain-source breakdown voltage and 25A continuous drain current. This surface-mount device offers a low 33mΩ typical drain-source on-resistance, with a maximum of 38mΩ. It operates within a temperature range of -55°C to 175°C and has a maximum power dissipation of 100W. The MOSFET is housed in a DPAK package, suitable for tape and reel packaging.
PackageDPAK
Current Rating25A
MountingSurface Mount
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Stmicroelectronics STD25NF10T4 technical specifications.
General
Package/Case
DPAK
Continuous Drain Current (ID)
25A
Current Rating
25A
Drain to Source Breakdown Voltage
100V
Drain to Source Resistance
33mR
Drain to Source Voltage (Vdss)
100V
Drain-source On Resistance-Max
38mR
Dual Supply Voltage
100V
Fall Time
15ns
Gate to Source Voltage (Vgs)
20V
Height
2.4mm
Input Capacitance
1.55nF
Lead Free
Lead Free
Length
6.6mm
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
100W
Mount
Surface Mount
Nominal Vgs
3V
Number of Elements
1
Package Quantity
2500
Packaging
Tape and Reel
Polarity
N-CHANNEL
Power Dissipation
100W
Radiation Hardening
No
Rds On Max
38mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STripFET™ II
Termination
SMD/SMT
Threshold Voltage
3V
Turn-Off Delay Time
60ns
Turn-On Delay Time
17ns
DC Rated Voltage
100V
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STD25NF10T4 Datasheet
Download the complete datasheet for Stmicroelectronics STD25NF10T4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

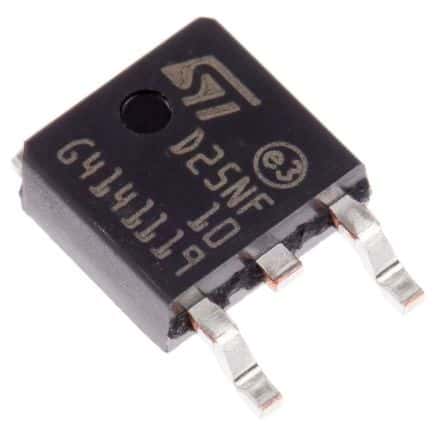

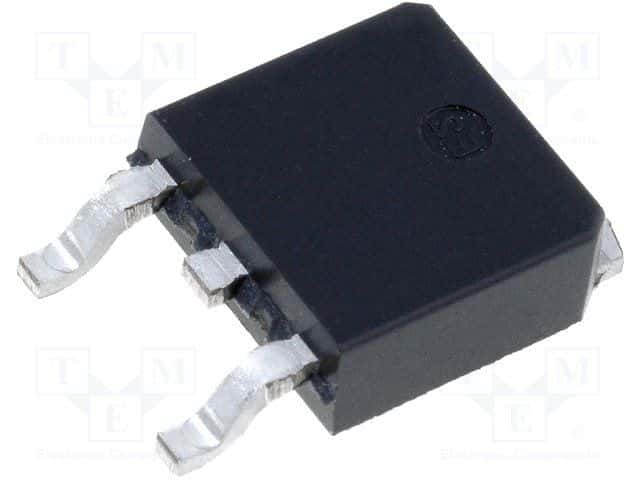

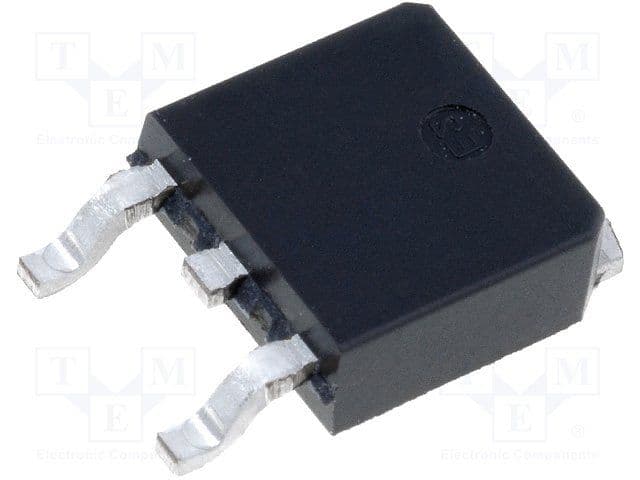

Product Images
