N-channel Power MOSFET featuring 600V drain-source breakdown voltage and 17A continuous drain current. Offers a low 190mΩ maximum drain-source on-resistance. Designed for through-hole mounting in a TO-220-3 package, this device boasts a 30W power dissipation and operates within a -55°C to 150°C temperature range. Key switching characteristics include a 11.5ns turn-on delay and 37ns fall time.
PackageTO-220-3
MountingThrough Hole
PolarityN-CHANNEL
Power30W
Quick Jump:
Technical Specifications
Stmicroelectronics STF24NM60N technical specifications.
General
Package/Case
TO-220-3
Continuous Drain Current (ID)
17A
Drain to Source Breakdown Voltage
600V
Drain to Source Resistance
190mR
Drain to Source Voltage (Vdss)
600V
Drain-source On Resistance-Max
190MR
Fall Time
37ns
Gate to Source Voltage (Vgs)
30V
Height
16.4mm
Input Capacitance
1.4nF
Lead Free
Lead Free
Length
10.4mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
30W
Mount
Through Hole
Packaging
Rail/Tube
Polarity
N-CHANNEL
Power Dissipation
30W
Radiation Hardening
No
Rds On Max
190mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MDmesh™ II
Threshold Voltage
3V
Turn-Off Delay Time
73ns
Turn-On Delay Time
11.5ns
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STF24NM60N Datasheet
Download the complete datasheet for Stmicroelectronics STF24NM60N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

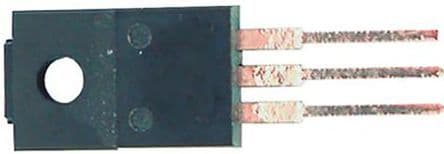

Product Images
