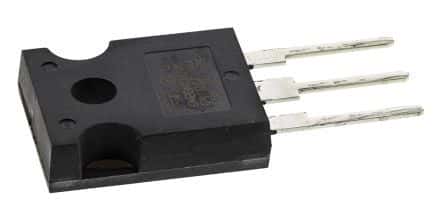

N-channel Insulated Gate Bipolar Transistor (IGBT) for high-power applications. Features a 600V collector-emitter breakdown voltage and a 30A continuous collector current, with a maximum collector current of 60A. Operates within a temperature range of -55°C to 150°C and offers a maximum power dissipation of 200W. Packaged in a TO-247 3-pin (3+Tab) configuration for through-hole mounting. Includes a 2.5V collector-emitter saturation voltage and a reverse recovery time of 44ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics STGW20NC60VD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-247 |
| Collector Emitter Breakdown Voltage | 600V |
| Collector Emitter Saturation Voltage | 2.5V |
| Collector Emitter Voltage (VCEO) | 600V |
| Collector-emitter Voltage-Max | 2.5V |
| Continuous Collector Current | 30A |
| Current Rating | 30A |
| Height | 20.15mm |
| Input Type | STANDARD |
| Lead Free | Lead Free |
| Length | 15.75mm |
| Max Collector Current | 60A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200W |
| Mount | Through Hole |
| Package Quantity | 600 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 44ns |
| RoHS Compliant | Yes |
| Series | PowerMESH™ |
| Turn-Off Delay Time | 100ns |
| Turn-On Delay Time | 31ns |
| DC Rated Voltage | 600V |
| Weight | 1.340411oz |
| Width | 5.15mm |
| RoHS | Compliant |
Download the complete datasheet for Stmicroelectronics STGW20NC60VD to view detailed technical specifications.
