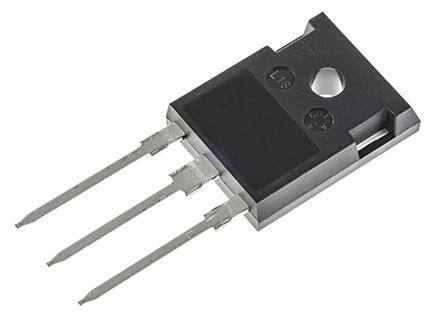

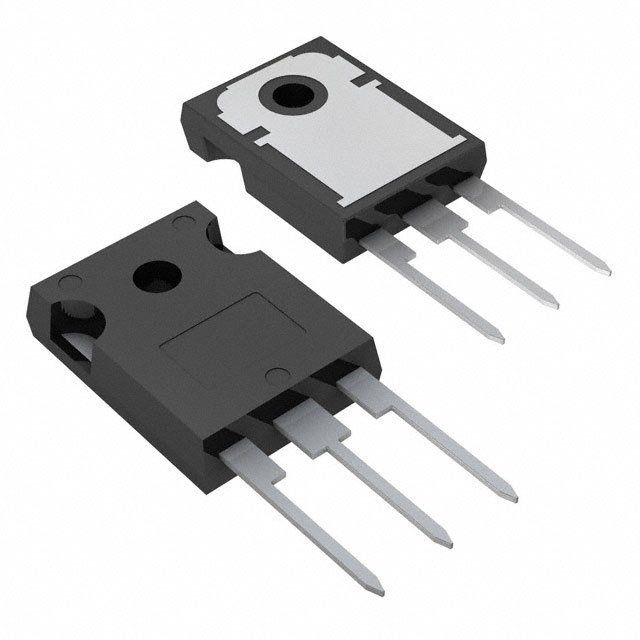

The STGW60V60F is a 600V insulated gate bipolar transistor (IGBT) with a maximum collector current of 80A. It features a TO-247 package and is designed for through-hole mounting. The device has a maximum power dissipation of 375W and operates within a temperature range of -55°C to 175°C. The STGW60V60F is compliant with RoHS regulations and is available in a rail/Tube packaging with 30 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics STGW60V60F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Stmicroelectronics STGW60V60F technical specifications.
| Package/Case | TO-247 |
| Collector Emitter Breakdown Voltage | 600V |
| Collector Emitter Saturation Voltage | 2.35V |
| Collector Emitter Voltage (VCEO) | 600V |
| Collector-emitter Voltage-Max | 2.3V |
| Height | 20.15mm |
| Input Type | STANDARD |
| Lead Free | Lead Free |
| Length | 15.75mm |
| Max Collector Current | 80A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 375W |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Power Dissipation | 375W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | STGW60V60F |
| Turn-Off Delay Time | 208ns |
| Turn-On Delay Time | 60ns |
| Width | 5.15mm |
| RoHS | Compliant |
